水稻OsAlR1基因耐铝性功能研究

doi:10.16819/j.1001-7216.2025.240510

摘要/Abstract

摘要：

【目的】随着土壤的酸化加剧，酸性土壤中的铝毒严重限制了水稻的生长发育，挖掘耐铝毒基因资源并解析其分子功能，培育耐铝毒品种，可保障酸性土壤上水稻的产量。【方法】利用CRISPR/Cas9技术构建敲除载体，采用同源重组和Golden Gate无缝克隆方法构建过表达载体，遗传转化获得转基因材料。筛选纯合过表达株系和敲除株系进行耐铝性表型分析并测定活性氧(ROS)含量及抗氧化酶活性。【结果】qRT-PCR结果表明，OsAlR1受铝胁迫诱导表达。敲除OsAlR1影响水稻根系发育。在铝处理后，相较于野生型，osalr1-3、osalr1-6株系积累了更多的Al³⁺及ROS，OE-OsAlR1-5、OE-OsAlR1-8株系积累的Al³⁺及ROS较少。OsAlR1的敲除会导致根中谷胱甘肽(GSH)的积累和SOD等抗氧化酶活性降低。qRT-PCR结果表明，在铝处理后调控苯丙烷生物合成途径的OsPAL7、OsHCT4、OsCCR18、Os02g0467600、PRX82和Os06g0522300在敲除突变体中表达量变化显著。【结论】OsAlR1受到铝胁迫的诱导，OsAlR1通过提高GSH的含量和SOD的活性来降低ROS对水稻的氧化胁迫。OsAlR1可能通过调控苯丙烷生物合成途径来影响水稻耐铝性。

关键词: 水稻, 铝胁迫, 根系, ROS, 抗氧化酶

Abstract:

【Objective】 With the aggravation of soil acidification, aluminum (Al) toxicity in acidic soil seriously limits the growth and development of rice. Mining Al-tolerant gene resources, analyzing their molecular functions, and breeding Al-tolerant varieties can ensure rice yield in acidic soil. 【Method】 CRISPR/Cas9 technology was used to construct knockout vectors. The overexpression vector was constructed by homologous recombination and Golden Gate seamless cloning. Transgenic materials were obtained by genetic transformation. Homozygous overexpression lines and knockout lines were screened for Al tolerance phenotype analysis and determination of reactive oxygen species (ROS) content and antioxidant enzyme activities.【Result】 qRT-PCR results showed that OsAlR1 expression was induced by Al stress. Knockout of OsAlR1 affected root development in rice. After Al treatment, compared with the wild type, the osalr1-3 and osalr1-6 lines accumulated more Al³⁺ and ROS, while the OE-OsAlR1-5 and OE-OsAlR1-8 lines accumulated less Al³⁺ and ROS. Knockout of OsAlR1 led to decreased glutathione (GSH) content and superoxide dismutase (SOD) activity in roots. qRT-PCR results revealed that genes regulating the phenylpropanoid biosynthesis pathway (OsPAL7, OsHCT4, OsCCR18, Os02g0467600, PRX82, and Os06g0522300) showed significant expression changes in the knockout lines after Al treatment.【Conclusion】 OsAlR1 expression is induced by Al stress, and OsAlR1 alleviates ROS-mediated oxidative stress by increasing GSH content and SOD activity. OsAlR1 may affect Al tolerance in rice by regulating the phenylpropanoid biosynthesis pathway.

Key words: rice, aluminum stress, roots, ROS, antioxidant enzyme

王镜博, 苏畅, 冯晶, 姜思旭, 徐海, 崔志波, 赵明辉. 水稻OsAlR1基因耐铝性功能研究[J]. 中国水稻科学, 2025, 39(5): 615-623.

WANG Jingbo, SU Chang, FENG Jing, JIANG Sixu, XU Hai, CUI Zhibo, ZHAO Minghui. Functional Study on Aluminum Tolerance of OsAlR1 Gene in Rice[J]. Chinese Journal OF Rice Science, 2025, 39(5): 615-623.

图/表 8

表1 本研究所用引物

Table 1. Primer sequences used in this study

引物名称 Primer name	序列 Primer sequence (5'-3')	用途 Usage
OsAlR1-F	AACACGGGGGACTTTGCAACATGGGCAACTCGCTGGCGTTG	基因扩增 Gene amplification
OsAlR1-R	TCCTCGCCCTTCACGATACACGCCTCATAGATGGTATCAAGGGC	基因扩增 Gene amplification
OsAlR1-gRNA-F	GGCAGCGTTGCGGTGCGTCTGTGG	CRISPR/Cas9载体构建 CRISPR/Cas9 vector construction
OsAlR1-gRNA-R	AAACCCACAGACGCACCGCAACGC	CRISPR/Cas9载体构建 CRISPR/Cas9 vector construction
OsAlR1-seq-F	GGAGAGAACACGGGGGAC	鉴定 Identification
OsAlR1-seq-R	GTGCAGATGAACTTGAGG	鉴定 Identification
OsAlR1-OE-F	GGAGAGAACACGGGGGAC	表达量分析 Expression analysis
OsAlR1-OE-R	GTGCAGATGAACTTGAGG
OsAlR1-KO-F	ATGGGCAACTCGCTGGCGTTG
OsAlR1-KO-R	CGCCTCATAGATGGTATCAAGGGC
OsAlR1-qPCR-F	AGCTGATGATCGAGGCGC
OsAlR1-qPCR-R	CTTGCTCCGCCCTTTCTTG
OsPAL7-qPCR-F	CATCGGGAAGCTCATGTTCG
OsPAL7-qPCR-R	CTTGAAGCCGTAGTCCAAGC
OsHCT4-qPCR-F	GGTCCGGCGATCATGTACTA
OsHCT4-qPCR-R	GCGAACACCTTCCTGAACTC
Os02g0467600-qPCR-F	CGCAGAGCTTCGAGTACAAC
Os02g0467600-qPCR-R	CACGGCACTTGTTGAGGTAG
OsCCR18-qPCR-F	CTGATGACGCTGCCAAGAAC
OsCCR18-qPCR-R	ATCATCTTCTCCGGGTCGTC
PRX82-qPCR-F	CGAGGAGTTCACGGAGAGTT
PRX82-qPCR-R	AGCAGTCGTGGAAGAAGAGG
Os06g0522300-qPCR-F	CTGACCAGGAGCTCTACACC
Os06g0522300-qPCR-R	CTCTTGTGAAGTCGGCGAAG

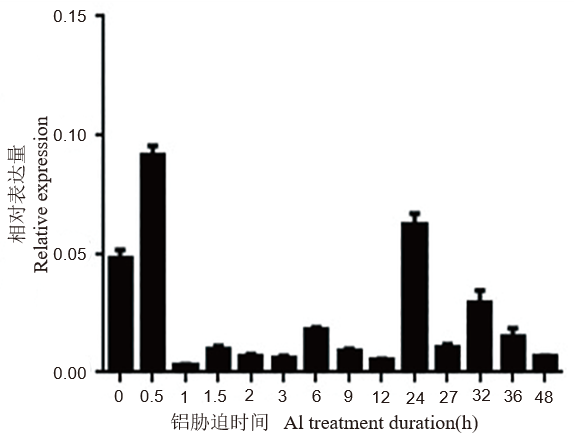

图1 铝胁迫对OsAlR1表达量的影响

Fig. 1. Effects of Al treatment on the expression of OsAlR1

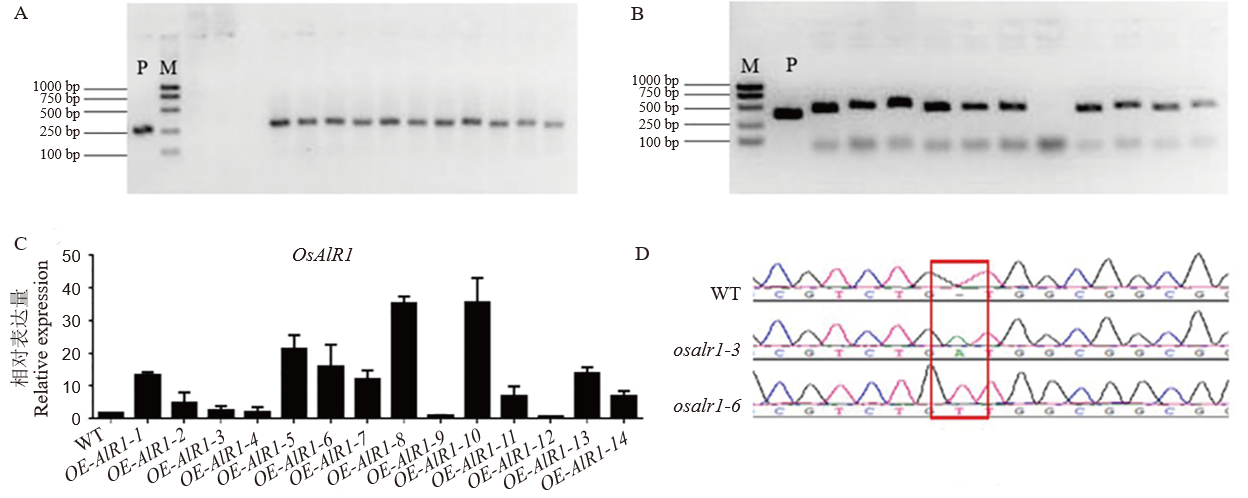

图2 转基因植株的阳性鉴定 A: 过表达株系阳性鉴定; B: 敲除株系阳性鉴定; C: 过表达株系表达量分析; D: 敲除株系靶点解码分析。M: Trans 1K; P: 阳性对照。

Fig. 2. Identification of transgenic plants A, Identification of overexpressing lines; B, Identification of knockout lines; C, Expression analysis of the overexpression lines; D, Target site analysis of knockout lines. M, Trans 1K; P, Positive control.

图3 转基因植株的根长测定 (比例尺=10 cm) A：敲除株系对照组根长；B：敲除株系实验组根长；C：敲除株系在铝处理前后根长比较；D：过表达株系对照组根长；E：过表达株系实验组根长; F：过表达株系在Al处理前后根长比较；CK：铝处理前; Al：铝处理后。*表示P值小于0.05。下同。

Fig. 3. Root length identification of transgenic plants (Scale Bar=10 cm) A, Root length of control groups of knockout lines; B, Root length of experimental groups of knockout lines; C, Comparison of root length of knockout lines before and after Al treatment; D, Root length of control groups of overexpression lines; E, Root length of experimental groups of overexpression lines; F, Comparison of root length of overexpression lines before and after Al treatment; CK, Before Al treatment; Al, After Al treatment. * indicates significant difference at the 0.05 probability level. The same below.

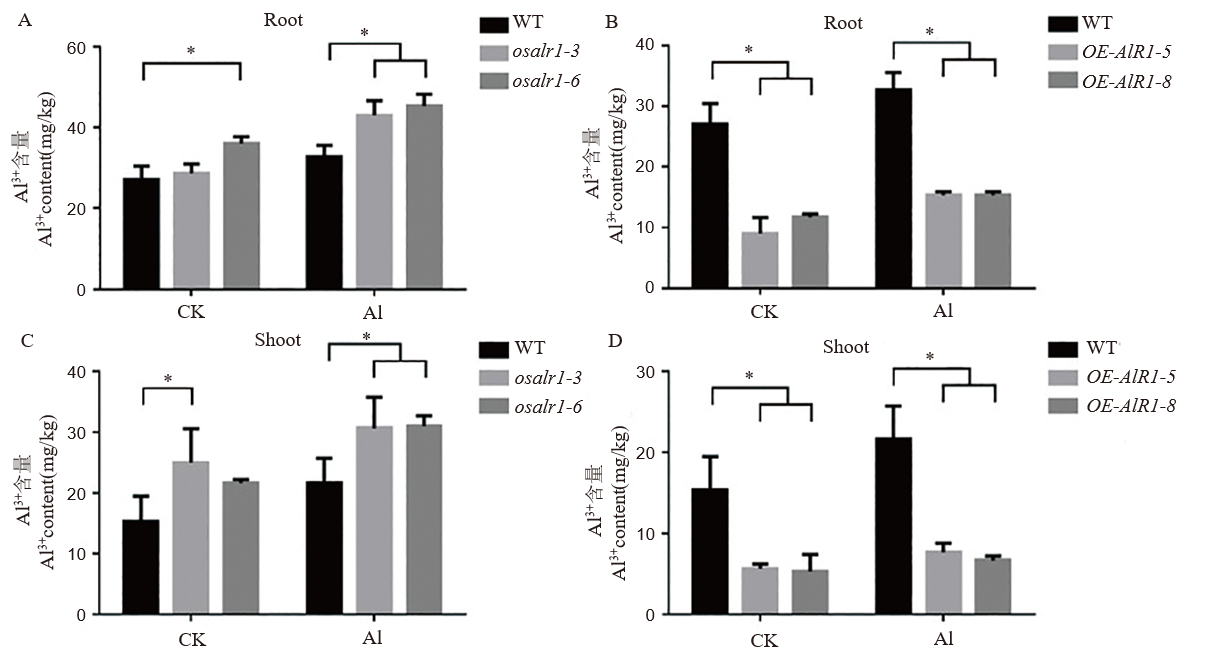

图4 转基因植株Al3+含量测定

Fig. 4. Al3+ content determination of transgenic plants

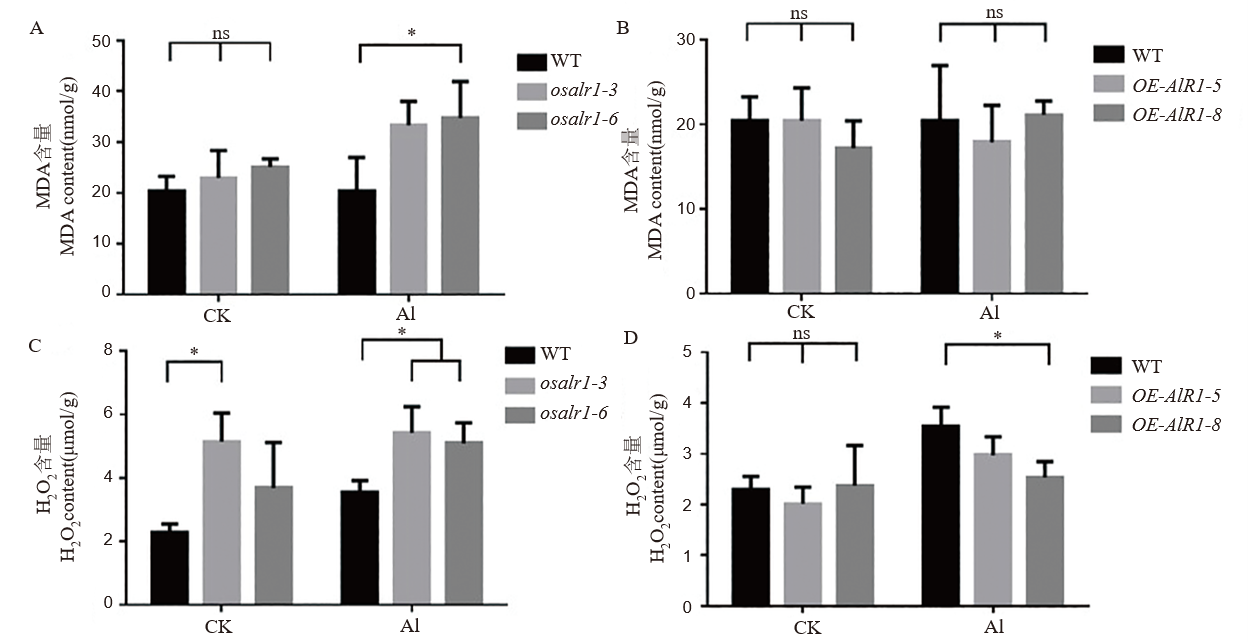

图5 转基因植株根系ROS的积累

Fig. 5. ROS production in transgenic plants roots

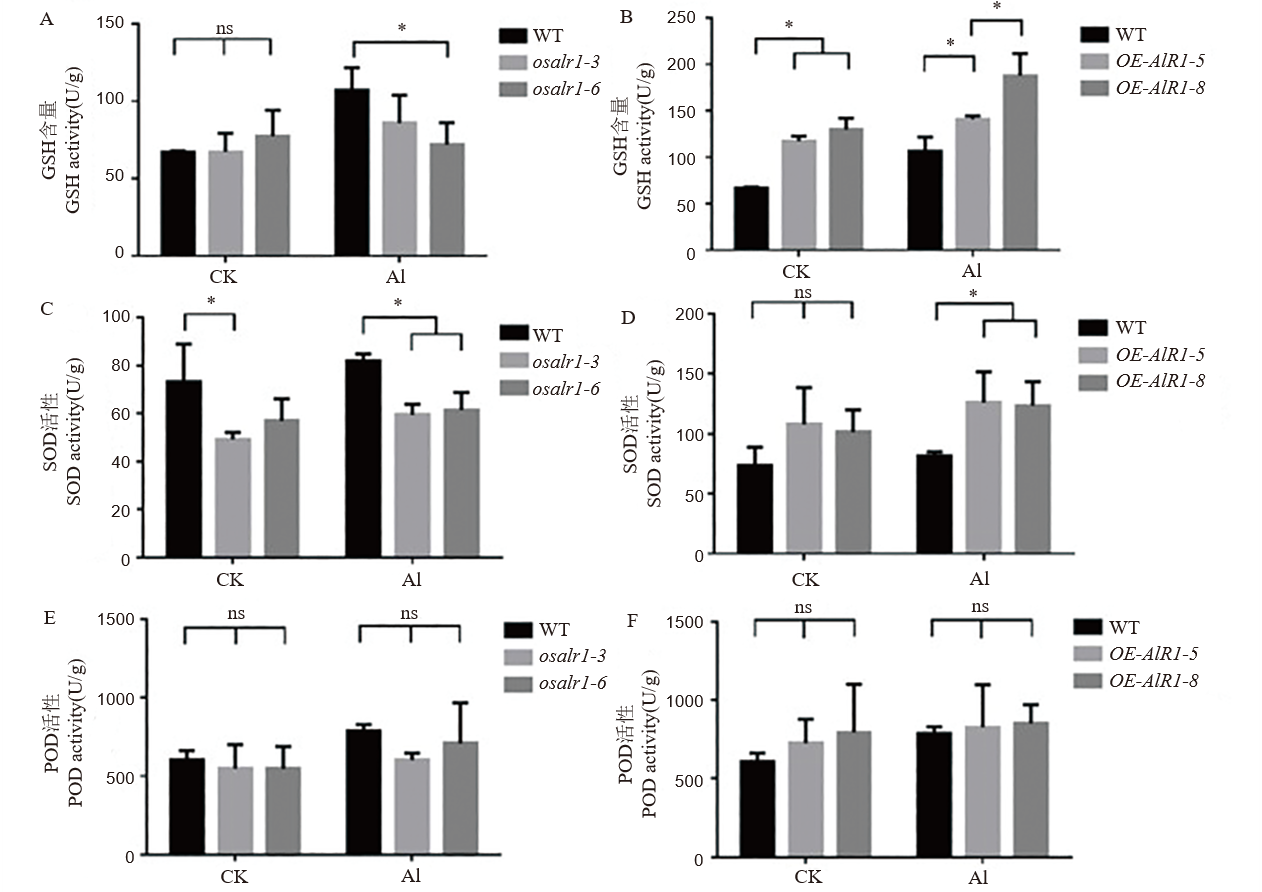

图6 转基因植株根系抗氧化酶活性测定

Fig. 6. ROS production in transgenic plants roots

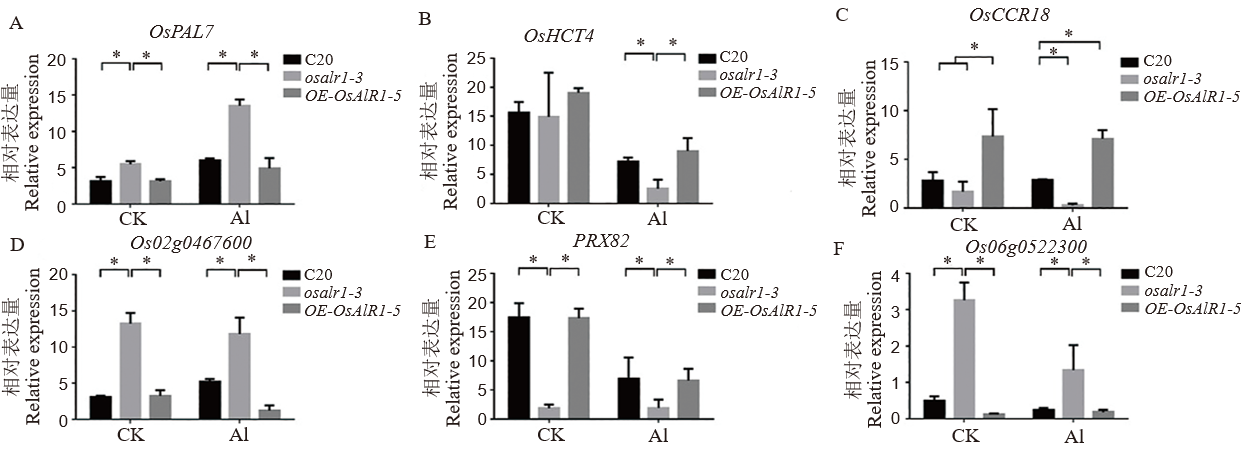

图7 OsAlR1转基因水稻耐铝相关基因的RT-qPCR分析

Fig. 7. RT-qPCR analysis of Al tolerance genes in OsAlR1 transgenic lines

参考文献 22

[1]	Liu H B, Zhu R, Shu K, Lü W X, Wang S, Wang C L. Aluminum stress signaling, response, and adaptive mechanisms in plants[J]. Plant Signaling & Behavior, 2022, 17(1): 2057060.
[2]	Ma J F. Syndrome of aluminum toxicity and diversity of aluminum resistance in higher plants[J]. International Review of Cytology, 2007, 264: 225-252.
[3]	Liu J, Piñeros M A, Kochian L V. The role of aluminum sensing and signaling in plant aluminum resistance[J]. Journal of Integrative Plant Biology, 2014, 56(3): 221-230.
[4]	Sharma P, Dubey R S. Involvement of oxidative stress and role of antioxidative defense system in growing rice seedlings exposed to toxic concentrations of aluminum[J]. Plant Cell Reports, 2007, 26(11): 2027-2038.
[5]	Kanazawa S, Sano S, Koshiba T, Ushimaru T. Changes in antioxidative enzymes in cucumber cotyledons during natural senescence: Comparison with those during dark-induced senescence[J]. Physiologia Plantarum, 2000, 109(2): 211-216.
[6]	Mittler R. Oxidative stress, antioxidants and stress tolerance[J]. Trends in Plant Science, 2002, 7(9): 405-410.
[7]	Liu Q Q, Luo L, Zheng L Q. Lignins: Biosynthesis and biological functions in plants[J]. International Journal of Molecular Sciences, 2018, 19(2): 335.
[8]	Dong N Q, Lin H X. Contribution of phenylpropanoid metabolism to plant development and plant-environment interactions[J]. Journal of Integrative Plant Biology, 2021, 63(1): 180-209.
[9]	Wang M L, Wang Y D, Li X Z, Zhang Y, Chen X L, Liu J Y, Qiu Y W, Wang A X. Integration of metabolomics and transcriptomics reveals the regulation mechanism of the phenylpropanoid biosynthesis pathway in insect resistance traits in Solanum habrochaites[J]. Horticulture Research, 2024, 11(2): uhad277.
[10]	Fritz R R, Hodgins D S, Abell C W. Phenylalanine ammonia-lyase. Induction and purification from yeast and clearance in mammals[J]. Journal of Biological Chemistry, 1976, 251(15): 4646-4650.
[11]	Ohl S, Hedrick S A, Chory J, Lamb C J. Functional properties of a phenylalanine ammonia-lyase promoter from Arabidopsis[J]. The Plant Cell, 1990, 2(9): 837-848.
[12]	Zhang X B, Liu C J. Multifaceted regulations of gateway enzyme phenylalanine ammonia-lyase in the biosynthesis of phenylpropanoids[J]. Molecular Plant, 2015, 8(1): 17-27.
[13]	Lacombe E, Hawkins S, van Doorsselaere J, Piquemal J, Goffner D, Poeydomenge O, Boudet A M, Grima-Pettenati J. Cinnamoyl CoA reductase, the first committed enzyme of the lignin branch biosynthetic pathway: Cloning, expression and phylogenetic relationships[J]. The Plant Journal, 1997, 11(3): 429-441.
[14]	Schoch G, Goepfert S, Morant M, Hehn A, Meyer D, Ullmann P, Werck-Reichhart D. CYP98A3 from Arabidopsis thaliana is a 3'-hydroxylase of phenolic esters, a missing link in the phenylpropanoid pathway[J]. Journal of Biological Chemistry, 2001, 276(39): 36566-36574.
[15]	Hoffmann L, Maury S, Martz F, Geoffroy P, Legrand M. Purification, cloning, and properties of an acyltransferase controlling shikimate and quinate ester intermediates in phenylpropanoid metabolism[J]. Journal of Biological Chemistry, 2003, 278(1): 95-103.
[16]	Wang J B, Su C, Cui Z B, Huang L X, Gu S, Jiang S X, Feng J, Xu H, Zhang W Z, Jiang L L, Zhao M H. Transcriptomics and metabolomics reveal tolerance new mechanism of rice roots to Al stress[J]. Frontiers in Genetics, 2022, 13: 1063984.
[17]	Zhao M H, Song J Y, Wu A T, Hu T, Li J Q. Mining beneficial genes for aluminum tolerance within a core collection of rice landraces through genome-wide association mapping with high density SNPs from specific-locus amplified fragment sequencing[J]. Frontiers in Plant Science, 2018, 9: 1838.
[18]	Guo J H, Liu X J, Zhang Y, Shen J L, Han W X, Zhang W F, Christie P, Goulding K W T, Vitousek P M, Zhang F S. Significant acidification in major Chinese croplands[J]. Science, 2010, 327(5968): 1008-1010.
[19]	Chu X Q, Wang J G, Li M Z, Zhang S J, Gao Y Y, Fan M, Han C, Xiang F N, Li G Y, Wang Y, Yu X, Xiang C B, Bai M Y. HBI transcription factor-mediated ROS homeostasis regulates nitrate signal transduction[J]. The Plant Cell, 2021, 33(9): 3004-3021.
[20]	Choudhury F K, Rivero R M, Blumwald E, Mittler R. Reactive oxygen species, abiotic stress and stress combination[J]. The Plant Journal, 2017, 90(5): 856-867.
[21]	Ito T, Ohkama-Ohtsu N. Degradation of glutathione and glutathione conjugates in plants[J]. Journal of Experimental Botany, 2023, 74(11): 3313-3327.
[22]	de Storme N, Geelen D. The impact of environmental stress on male reproductive development in plants: Biological processes and molecular mechanisms[J]. Plant, Cell & Environment, 2014, 37(1): 1-18.
