Leaching Method of Available Nitrogen in Rice Potted Soil and Effect Analysis of Short-term Nitrogen Deficiency

doi:10.16819/j.1001-7216.2018.7069

Abstract

Abstract:

【Objective】 This study aims to explore a simple and effective leaching method of available nitrogen in potted soil, and to reveal the effects of soil nitrogen deficiency at different periods before anthesis on nitrogen accumulation in main functional leaves and post-anthesis plant of different types rice, which would clarify the characteristics of nitrogen accumulation and translocation after anthesis, and lay the research foundation for reducing nitrogen fertilizer application. 【Method】 In this study, the effects of three leaching methods on available nitrogen reduction in potted soils were compared. Meanwhile, the effects of short-term nitrogen deficiency 14 d and 3 d before anthesis on SPAD value, nitrogen concentration of top-three leaves and plant nitrogen content after anthesis were discussed using indica-japanica hybirid rice Yongyou 12(YY12), and indica hybrid rice variety Zhongzheyou 1(ZZY1). 【Results】 The results showed that 85.6% nitrate nitrogen and 67.1% ammonium nitrogen in soil could be eluted by leaching structure + sandy /soil mixed matrix(T3) with 3 times of leaching. Under the two leaching treatments, the contents of nitrate and ammonium nitrogen in potted soil decreased by 42.1%-59.3% and 35.0%-43.9%, respectively. This could achieve the expected effect of reducing soil nitrogen to inhibit effectively the soil available nitrogen supply capacity in the short term. Affected by soil nitrogen deficiency before anthesis, SPAD value and nitrogen concentration of top-three leaves, stem-sheath, leaves, panicle and plant nitrogen content at the 10th day after heading of YY12 were decreased significantly. At the same time, there was a remarkable difference of stem-sheath, panicle and plant nitrogen content between the two leaching treatments. SPAD value and nitrogen concentration of top-three leaves, panicle and plant nitrogen content at the 10th day after heading of ZZY1 were also decreased dramatically under the leaching treatment 14 d before anthesis. However, the leaching treatment 3 d before anthesis had little effect on nitrogen concentration of top-three leaves and plant nitrogen content. 【Conclusion】 In conclusion, the sensitivity of rice to nitrogen deficiency 14 d before anthesis(meiosis stage) was greatly higher than that 3 d before anthesis. The sensitivity of leaf color and nitrogen concentration of leaves at different leaf positions to soil nitrogen deficiency were enhanced from bottom to top. The influence of soil nitrogen deficiency at the two leaching periods on YY12 was greater than that of ZZY1, which means that the lower demand for soil available nitrogen of indica hybrid rice ZZY1 after anthesis, and the higher demand of indica-japanica hybirid rice YY12 after the meiosis period.

Key words: rice, leaching, available nitrogen, nitrogen deficiency, meiosis stage, post-anthesis

摘要：

【目的】探索一种简易、有效的盆栽土壤速效氮淋洗方法,并分析水稻花前不同时期土壤氮亏缺对不同类型水稻主功能叶及植株花后氮积累的影响,以期为阐明水稻花后氮素积累、转运特征和大田生产减氮技术应用奠定研究基础。【方法】比较了3种水稻盆栽土壤速效氮淋洗方法的减氮效果,同时探讨了水稻花前14 d和花前3 d短期亏氮对籼粳杂交稻甬优12号、籼型杂交稻中浙优1号上3叶SPAD值、氮浓度和花后植株含氮量的影响。【结果】通过淋洗结构+沙土混合基质方法进行3次淋洗,即可将土壤中85.6%的硝态氮和67.1%的铵态氮洗脱;水稻花前处理后,土壤硝态氮和铵态氮含量分别降低42.1%~59.3%和35.0%~43.9%,可实现预期的土壤减氮效果,短期内对土壤速效氮供应能力形成有效抑制。花前土壤氮亏缺导致甬优12上3叶SPAD值和氮浓度以及齐穗后10 d植株茎鞘、叶、穗和单株含氮量显著降低,且茎鞘、穗和单株含氮量在两淋洗处理间差异显著。花前14 d淋洗减氮导致中浙优1号上3叶SPAD值和氮浓度以及齐穗后10 d单株和穗部含氮量显著下降,花前3 d淋洗处理则对中浙优1号上3叶氮浓度和植株氮积累量几乎无影响。【结论】水稻对花前14 d氮亏缺的敏感性显著高于花前3 d,植株不同叶位叶片的叶色和氮浓度对土壤氮亏缺敏感度由下而上增强,两时期土壤氮亏缺对籼粳杂交稻甬优12的影响均远大于籼型杂交稻中浙优1号,意味着籼型杂交稻中浙优1号花后对土壤速效氮需求明显降低,而籼粳杂交稻甬优12减数分裂期后对土壤速效氮存在更高需求。

关键词: 水稻, 淋洗, 速效氮, 氮亏缺, 减数分裂期, 花后

CLC Number:

Hui WU, Jing XIANG, Huizhe CHEN, Yuping ZHANG, Yikai ZHANG, Guangmei JI, Yaliang WANG, Hongzhi SHI, Wenqian ZHANG, Defeng ZHU. Leaching Method of Available Nitrogen in Rice Potted Soil and Effect Analysis of Short-term Nitrogen Deficiency[J]. Chinese Journal OF Rice Science, 2018, 32(1): 78-88.

武辉, 向镜, 陈惠哲, 张玉屏, 张义凯, 姬广梅, 王亚梁, 史鸿志, 张文倩, 朱德峰. 水稻盆栽速效氮淋洗法及短期亏氮效果分析[J]. 中国水稻科学, 2018, 32(1): 78-88.

Figures/Tables 10

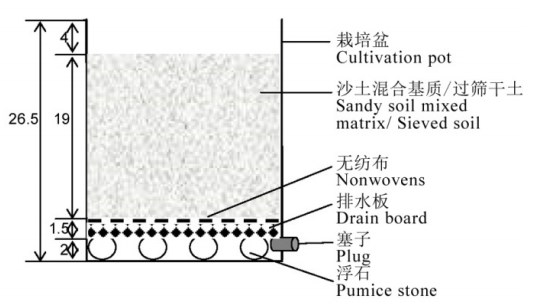

Fig. 1. Nitrogen leaching structure in potted soil.Values show the length of each parts of the leaching structure (cm).

Table 1 Development stage and growth period of the tested varieties.

年份 Year	品种 Variety	播种期 Sowing (Month-Day)	移栽期 Transplanting (Month-Day)	抽穗期 Heading (Month-Day)	成熟期 Maturity (Month-Day)	抽穗–成熟期 Duration from heading to maturity/d	全生育期天数 Growth period /d
2015	中浙优1号 Zhongzheyou 1	05-22	06-13	08-25	10-05	41	136
	甬优12号 Yongyou 12	05-22	06-13	09-03	11-03	61	165
2016	中浙优1号Zhongzheyou 1	05-17	06-08	08-20	09-28	39	134
	甬优12号 Yongyou 12	05-17	06-08	09-04	11-03	60	170

Table 2 Effects of different leaching methods on available nitrogen accumulation in leacheate.

速效氮 Available nitrogen	处理 Treatment	淋洗量 Leaching account/(mg·kg^-1)					累积百分比 Cumulative percentage/%
速效氮 Available nitrogen	处理 Treatment	W₁	W₂	W₃	W₄	Sum	W₁	W₂	W₃	W₄
硝态氮 Nitrate nitrogen	T₁	18.4±0.4	6.8±0.3	4.6±0.2	4.7±0.3	34.4±0.4 b	53.4	73.1	86.4	100
	T₂	14.1±0.2	7.0±0.4	6.2±0.3	4.0±0.2	31.3±0.6 c	45.2	67.5	87.2	100
	T₃	33.6±0.2	4.4±0.2	3.0±0.2	3.7±0.2	44.7±0.3 a	75.2	85.0	91.7	100
铵态氮 Ammonium nitrogen	T₁	15.3±0.4	5.3±0.3	1.2±0.1	1.7±0.2	23.5±0.3 b	65.2	87.6	92.7	100
	T₂	12.7±0.1	7.1±0.1	0.8±0.1	0.7±0.1	21.4±0.2 c	59.3	92.7	96.6	100
	T₃	21.0±0.3	3.2±0.5	1.5±0.2	1.3±0.3	26.9±0.2 a	77.8	89.6	95.2	100

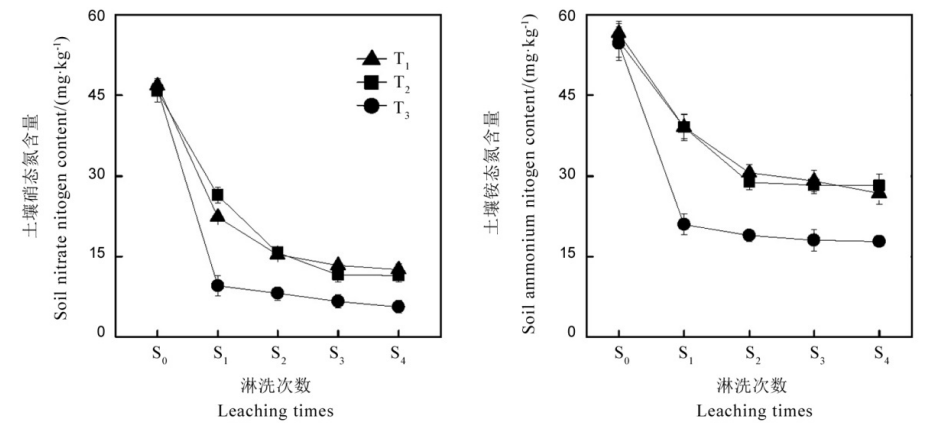

Fig. 2. Effects of different leaching methods on available nitrogen residues in soil.S0, S1, S2, S3, and S4 indicate available nitrogen residues in soil before leaching, the first time, the second time, the third time, and the fourth time of leaching, respectively. All data are mean±SE; n=5.

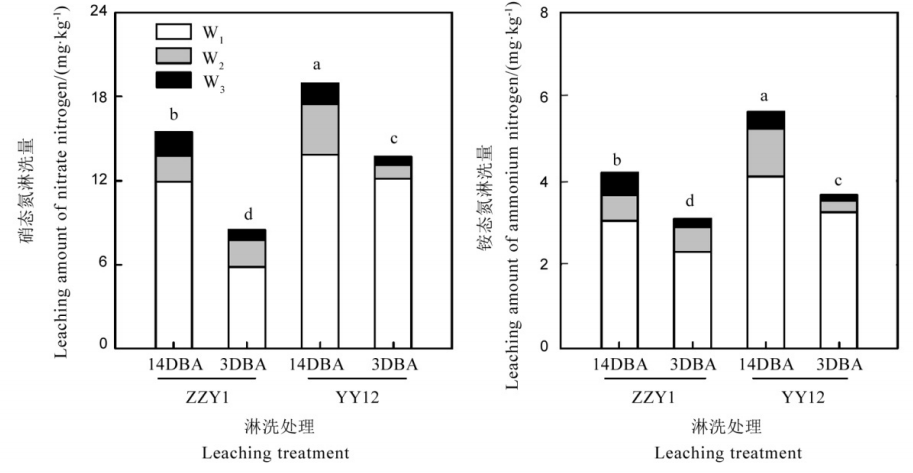

Fig. 3. Effects of leaching before anthesis on available nitrogen accumulation in leacheate.W1, W2, and W3 indicate the first time, the second time, and the third time of leaching, respectively. ZZY1, Zhongzheyou 1; YY12, Yongyou 12. 14DBA, Fourteen days before anthesis; 3DBA, Three days before anthesis. Different lowercase letters indicate statistical significance (P<0.05) among different leaching treatments. (n=5). The same as below.

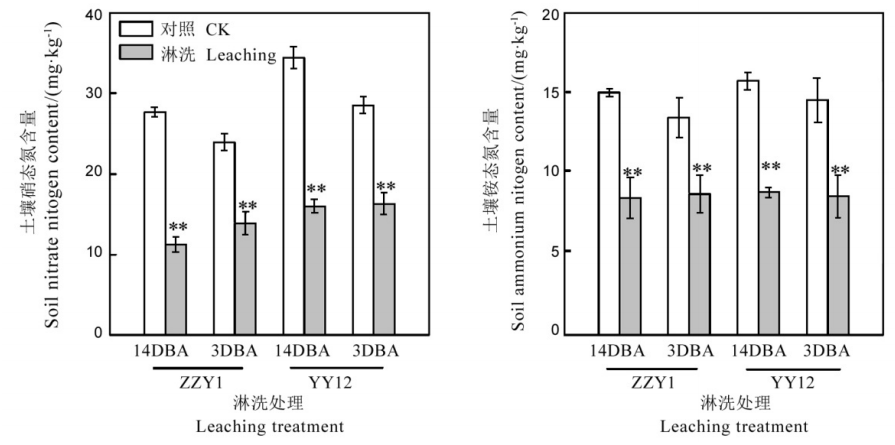

Fig. 4. Effects of leaching before anthesis on available nitrogen residues in soil.**, Available nitrogen residues in soil significantly difference at P<0.01 level between CK and leaching treatment. All data are mean±SE; n=5.

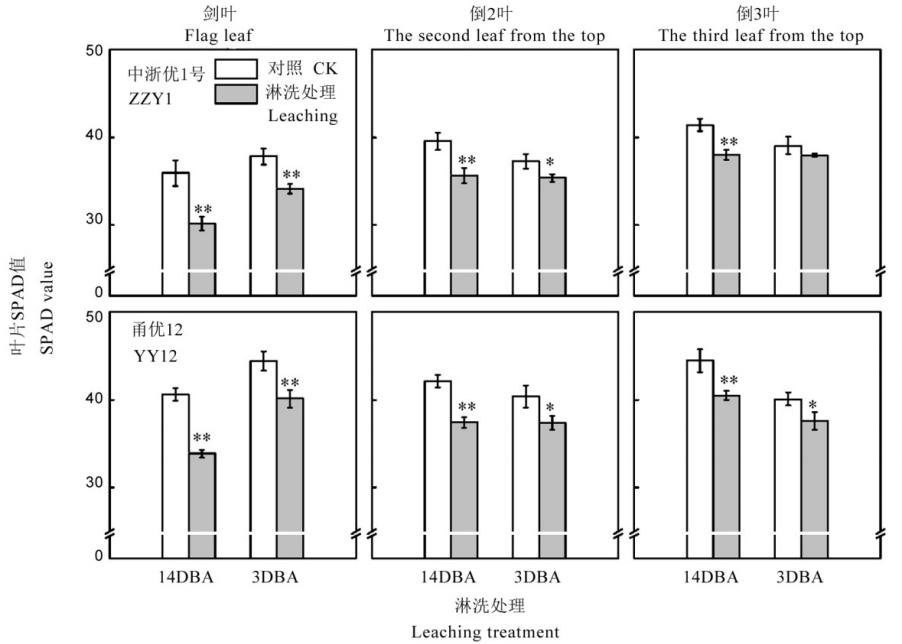

Fig. 5. Effects of leaching before anthesis on SPAD value of three leaves from the top in 2016.*, **, Significantly difference at 0.05 and 0.01 levels, respectively, between CK and leaching treatment. All data are mean± SE; n=10. The same as below.

Fig. 6. Effects of leaching three days before anthesis on SPAD value of three leaves from the top in 2015.

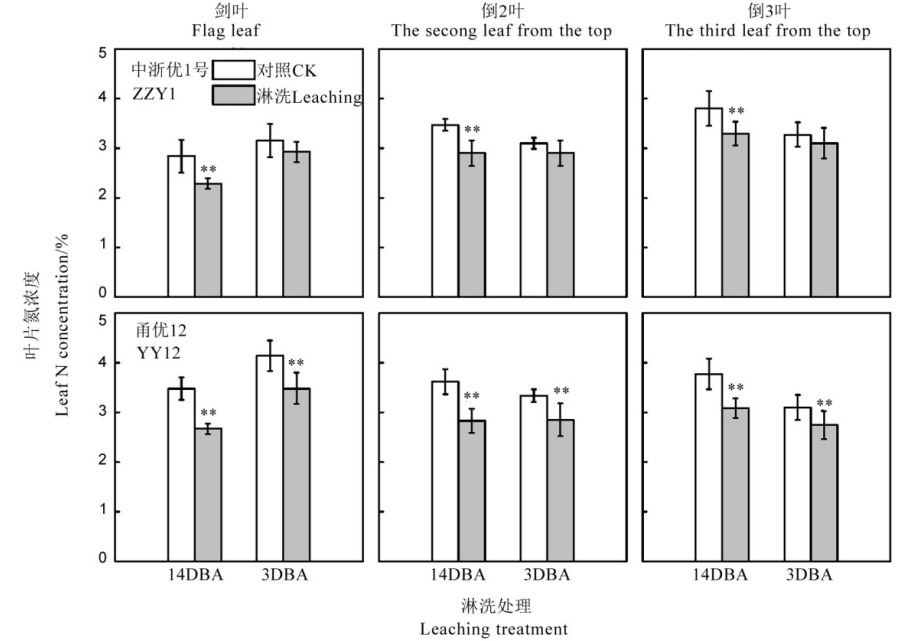

Fig. 7. Effects of leaching before anthesis on nitrogen concentration of three leaves from the top in 2016.All data are mean± SE; n=5.

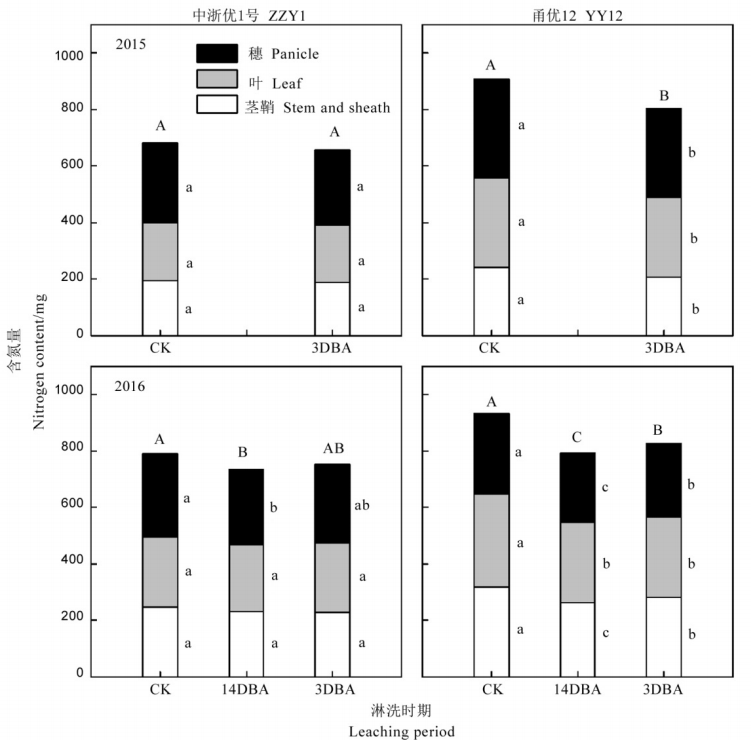

Fig. 8. Effects of leaching before anthesis on nitrogen content in different parts of plant.Different small letters indicate statistical significance (P<0.05) of nitrogen content in the same part among different leaching treatments. Different capital letters indicate statistical significance (P<0.05) of nitrogen content per plant among the different leaching treatments. All data are mean± SE; n=5.

References 38

[1]	Peng S B,Buresh R J,Huang J L,Yang J C, Zou, Y B, Zhong X H, Wang, G H, Zhang F S. Strategies for overcoming low agronomic nitrogen use efficiency in irrigated rice systems in China.Field Crops Res,2006,96(1):37-47.
[2]	Guo J H,Liu X J,Zhang Y,Shen J L,Han W X,Zhang W F,Christie P, Goulding K W T, Vitousek P M, Zhang F S. Significant acidification in major Chinese croplands.Science,2010,327(5968):1008-1010.
[3]	张福锁,王激清,张卫峰,崔振岭,马文奇,陈新平,江荣风.中国主要粮食作物肥料利用率现状与提高途径.土壤学报,2008,45(5):915-924.
	Zhang F S,Wang J Q,Zhang W F,Cui Z L,Ma W Q,Chen X P,Jiang R F.Nutrient use efficiencies of major cereal crops in China and measures for improvement.Acta Pedol Sin,2008,45(5):915-924. (in Chinese with English abstract)
[4]	曹仁林,贾晓葵.我国集约化农业中氮污染问题及防治对策.土壤肥料,2001(3):3-6.
	Cao R L, Jia, X K.The problems and control countermeasures of nitrogen pollution in agriculture of China.Soils Fert, 2001(3):3-6. (in Chinese with English abstract)
[5]	Vitousek P M,Naylor R,Crews T,David M B,Drinkwater L E,Holland E, Johns, P J, Katzenberger J, Martinelli L A, Matson P A, Nziguheba G, Ojima D, Palm C A, Robertson G P, Sanchez P A, Townsend A R, Zhang F S. Nutrient imbalances in agricultural development.Science,2009,324(5934):1519-1520.
[6]	Gilbert N.The disappearing nutrient. Nature,2009,461(7265):716-718.
[7]	Qiao J,Yang L Z,Yan T M,Xue F,Zhao D.Nitrogen fertilizer reduction in rice production for two consecutive years in the Taihu Lake area.Agric Ecos & Environ,2012,146(1):103-112.
[8]	Chen Y T,Peng J,Wang J, F P H, Hou Y, Zhang C D, Fahad S, Peng S B, Cui K H, Nie L X, Huang J L. Crop management based on multi-split topdressing enhances grain yield and nitrogen use efficiency in irrigated rice in China.Field Crops Res,2015,184: 50-57.
[9]	晏娟,沈其荣,尹斌,万新军.应用15N示踪技术研究水稻对氮肥的吸收和分配.核农学报,2009,23(3):487-491, 496.
	YAN J,SHEN Q R,YIN B,WAN X J.Fertilizer-N uptake and distribution in rice plants using 15N tracer technique.Acta Agric Nucl Sin,2009,23(3):487-491, 496. (in Chinese with English abstract)
[10]	Deng F,Wang L,Ren W J,Mei X F.Enhancing nitrogen utilization and soil nitrogen balance in paddy fields by optimizing nitrogen management and using polyaspartic acid urea.Field Crops Res,2014,169: 30-38.
[11]	Deng F,Wang L,Ren W J,Mei X F,Li S X.Optimized nitrogen managements and polyaspartic acid urea improved dry matter production and yield of indica hybrid rice.Soil Till Res,2015,145: 1-9.
[12]	Li M,Zhang H C,Yang X,Ge M J,Ma Q,Wei H Y,Dai Q G,Huo Z Y,Xu K,Luo D Q.Accumulation and utilization of nitrogen, phosphorus and potassium of irrigated rice cultivars with high productivities and high N use efficiencies.Field Crops Res,2014,161: 55-63.
[13]	杜加银,茹美,倪吾钟.减氮控磷稳钾施肥对水稻产量及养分积累的影响.植物营养与肥料学报,2013,19(3):523-533.
	Du J Y,Ru M,Ni W Z.Effects of fertilization with reducing nitrogen, controlling phosphorus and stabilizing potassium on rice yield and nutrient accumulation.Plant Nutr Fert Sci,2013,19(3):523-533. (in Chinese with English abstract)
[14]	朱相成,张振平,张俊, 等.增密减氮对东北水稻产量、氮肥利用效率及温室效应的影响.应用生态学报,2016(2):453-461.
	Zhu X C,Zhang Z P,Zhang J,Deng A X,Zhang W J.Effects of increased planting density with reduced nitrogen fertilizer application on rice yield, N use efficiency and greenhouse gas emission in Northeast China.Chin J Appl Ecol,2016(2):453-461. (in Chinese with English abstract)
[15]	Jiang L G,Dai T B,Jiang D,Cao W X,Gan X Q,Wei S Q.Characterizing physiological N-use efficiency as influenced by nitrogen management in three rice cultivars.Field Crops Res,2004,88(2):239-250.
[16]	Jiang L G,Dong D F,Gan X Q,Wei S Q.Photosynthetic efficiency and nitrogen distribution under different nitrogen management and relationship with physiological N-use efficiency in three rice genotypes.Plant Soil,2005,271(1):321-328.
[17]	米国华,陈范骏,张福锁. 作物养分高效的生理基础与遗传改良. 北京:中国农业大学出版社, 2012.
	Mi G H, Chen,F J, Zhang,F S.Physiological basis and genetic improvement of nutrient use efficiency in crops. Beijing: China Agricultural Press, 2012.
[18]	俞巧钢,叶静,杨梢娜,符建荣,马军伟,孙万春姜丽娜, 王强, 汪建妹.不同施氮量对单季稻养分吸收及氨挥发损失的影响.中国水稻科学,2012,26(4):487-494.
	Yu Q G, J Y, Yang S N, Fu J R, Ma J W, Sun W C, Jiang L N, Wang Q, Wang J M. Effects of different introgen application levels on rice nutrient uptake and ammonium volatilization.Chin J Rice Sci,2012,26(4):487-494. (in Chinese with English abstract)
[19]	王秀芹,张洪程,黄银忠,戴其根,霍中洋,许轲,邵世志,徐巡军.施氮量对不同类型水稻品种吸氮特性及氮肥利用率的影响.上海交通大学学报: 农业科学版,2003,21(4):325-330.
	Wang X Q,Zhang H C,Huang Y Z,Dai Q G,Huo Z Y,Xu K,Shao S Z,Xu X J.Effects of N-application rate on the characters of uptake nitrogen and nitrogen recovery of different rice varieties.J Shanghai Jiaotong Univ: Agric Sci,2003,21(4):325-330.
[20]	陈玉泉,王延颐,孙玲,刘羽.水稻群体叶色的光谱诊断及其在高产栽培中的应用基础.江苏农业学报,1995(2):6-10.
	Chen Y Q,Wang Y Y,Sun L,Liu Y.Spectral diagnosis of rice canopy leaf colors and its possible application in high yielding cultivation.Jiangsu J Agric Sci,1995(2):6-10. (in Chinese with English abstract)
[21]	李刚华,王惠芝,王绍华,王强盛,郑永美,丁艳锋.穗肥对水稻穗分化期碳氮代谢及颖花数的影响.南京农业大学学报,2010,33(1):1-5.
	Li G H,Wang H Z,Wang S H,Wang Q S,Zheng Y M,Ding Y F.Effect of nitrogen applied at rice panicle initiaton stage on carbon and nitrogen metabolism and spikelets per panicle.J Nanjing Agric Univ,2010,33(1):1-5. (in Chinese with English abstract)
[22]	纪雄辉,郑圣先,石丽红,廖育林. 洞庭湖区不同稻田土壤及施肥对养分淋溶损失的影响. 土壤学报, 2008(4):663-671.
	Ji X H,Zheng S X,Shi L H,Liu Y L.Effect of fertilization on nutrient leaching loss from different paddy soils in Dongting lake area.Acta Pedol Sin,2008,7(4):663-671.(in Chinese with English abstract)
[23]	连纲,王德建,林静慧,阎德智.太湖地区稻田土壤养分淋洗特征.应用生态学报,2003,14(11):1879-1883.
	Lian G,Wang D J,Lin J H,Yan D Z.Characteristics of nutrient leaching from paddy field in Taihu Lake area.Chin J Appl Ecol,2003,14(11):1879-1883. (in Chinese with English abstract)
[24]	高茹,李裕元,杨蕊,魏红安,聂敏,张满意,吴金水.亚热带主要耕作土壤硝态氮淋失特征试验研究.植物营养与肥料学报,2012,18(4):839-852.
	Gao R,Li Y Y,Yang R,Wei H A,Nie M,Zhang M Y,Wu J S.Study on nitrate leaching characteristics in arable soils in subtropical region.Plant Nutr Fert Sci,2012,18(4):839-852. (in Chinese with English abstract)
[25]	张玉玲,陈温福,虞娜,张玉龙,邹洪涛,党秀丽. 北方地区滨海盐渍土型稻田土壤供氮能力的研究. 土壤通报, 2011(5):1143-1147.
	Zhang Y L,Chen W F,Yu N,Zhang Y L,Zou H T,Dang X L.Studies on nitrogen supplying capacity of paddy soil of coastal saline soil in the North area.Chin J Soil Sci, 2011(5):1143-1147. (in Chinese with English abstract)
[26]	Ataulkarim S T,Yao X,Liu X J,Cao W X,Zhu Y.Development of critical nitrogen dilution curve of Japonica rice in Yangtze River Reaches.Field Crops Res,2013,149(149):149-158.
[27]	罗良国,闻大中,沈善敏.北方稻田生态系统养分渗漏规律研究.中国农业科学,2000,33(2):68-74.
	Luo L G,Wen D Z,Shen S M.Study on the percolating regularity of nutrient in rice field ecosystem of Northern China.Sci Agric Sin,2000,33(2):68-74. (in Chinese with English abstract)
[28]	吴建富,张美良,刘经荣,王海辉.不同肥料结构对红壤稻田氮素迁移的影响.植物营养与肥料学报,2001,7(4):368-373.
	Effect of different structure of fertilizer on the migration of nitrogen in red rice soil.Plant Nutr Fert Sci,2001,7(4):368-373. (in Chinese with English abstract)
[29]	王少平,俞立中,许世远,程声通.上海青紫泥土壤氮素淋溶及其对水环境影响研究.长江流域资源与环境,2002,11(6):554-558.
	Wang S P,Yu L Z,Xu S Y,Chen S T.Nitrogen leaching in the purple clay and analysis on its influence on water environmental quality in Shanghai.Resour Environ Yangtze Basin,2002,11(6):554-558. (in Chinese with English abstract)
[30]	Chowdary V M,Rao N H, Sarma P B S.A coupled soil water and nitrogen balance model for flooded rice fields in India.Agric Ecosys & Environ,2004,103(3):425-441.
[31]	Mae T,Ohira K.The Remobilization of nitrogen related to leaf growth and senescence in rice plants (Oryza sativa L.).Plant & Cell Physiol,1981,22(6):1067-1074.
[32]	Mae T,Makino A,Ohira K.Changes in the amounts of ribulose bisphosphate carboxylase synthesized and degraded during the life span of rice leaf (Oryza sativa L.). Plant Cell Physiol,1983,24(6):1079-1086.
[33]	Wang S H,Zhu Y,Jiang H D,Cao W X.Positional differences in nitrogen and sugar concentrations of upper leaves relate to plant N status in rice under different N rates. Field Crops Res,2006,96: 224-234.
[34]	李刚华,丁艳锋,薛利红,王绍华.利用叶绿素计(SPAD-502)诊断水稻氮素营养和推荐追肥的研究进展.植物营养与肥料学报,2005,11(3):412-416.
	Li G H,Ding Y F,Xue L H,Wang S H.Research progress on diagnosis of nitrogen nutrition and fertilization recommendation for rice by use chlorophyll meter.Plant Nutr Fert Sci,2005,11(3):412-416. (in Chinese with English abstract)
[35]	Peng S,Garcia F V,Laza R C,Sanico A L,Visperas R M,Cassman K G.Increased N-use efficiency using a chlorophyll meter on high-yielding irrigated rice.Field Crops Res,1996,47(2-3):243-252.
[36]	姜继萍,杨京平,杨正超,邹俊良,戈长水.不同氮素水平下水稻叶片及相邻叶位SPAD值变化特征.浙江大学学报: 农业与生命科学版,2012,38(2):166-174.
	Jiang J P,Yang J P,Yang Z C,Zou J L,Ge C S.Dynamic characteristics of SPAD value of rice leaf and adjacent leaf under different N application rates.J Zhejiang Univ: Agric & Life Sci,2012,38(2):166-174. (in Chinese with English abstract)
[37]	赵全志,陈静蕊,刘辉,乔江方,高桐梅,杨海霞,王继红.水稻氮素同化关键酶活性与叶色变化的关系.中国农业科学,2008,41(9):2607-2616.
	Zhao Q Z,Chen J R,Liu H,Qiao J F,Gao T M,Yang H X,Wang J S.Relationship between activities of nitrogen assimilation enzymes and leaf color of rice.Sci Agric Sin,2008,41(9):2607-2616. (in Chinese with English abstract)
[38]	韦还和,孟天瑶,李超,张洪程,史天宇,马荣荣,王晓燕,杨筠文,戴其根,霍中洋,许轲,魏海燕,郭保卫.籼粳交超级稻甬优538花后氮素积累模型与特征分析.作物学报,2016,42(4):540-550.
	Wei H H,Meng T Y,Li C,Zhang H C,Shi T Y,Ma R R,Wang X Y,Yang J W,Dai Q G,Huo Z Y,Xu K,Wei H Y,Guo B W.Dynamic model and its characteristics analysis for nitrogen accumulationafter heading in Yongyou 538.Acta Agron Sin,2016,42(4):540-550. (in Chinese with English abstract)
