中国水稻科学 ›› 2022, Vol. 36 ›› Issue (6): 562-571.DOI: 10.16819/j.1001-7216.2022.220316
收稿日期:
2022-03-31
修回日期:
2022-06-06
出版日期:
2022-11-10
发布日期:
2022-11-10
通讯作者:
袁定阳
基金资助:
LI Xiaoxiu1, LÜ Qiming1,2, YUAN Dingyang1,2,*()
Received:
2022-03-31
Revised:
2022-06-06
Online:
2022-11-10
Published:
2022-11-10
Contact:
YUAN Dingyang
摘要:
筛选和培育镉(Cd)低积累水稻品种是解决稻米镉污染问题最经济、有效的办法。现有研究表明OsNramp5是介导水稻Cd吸收最重要的基因,其功能缺失后,水稻籽粒Cd含量极显著下降,但同时会影响水稻必需元素锰(Mn)的吸收,而在前人关于OsNramp5变异影响水稻生长发育的研究中,结论并不一致。系统了解OsNramp5基因变异对水稻重要农艺性状的影响有助于推动低Cd优质水稻新品种的培育。本文重点对OsNramp5基因变异对水稻中金属离子的含量,水稻的生长发育、产量性状及米质的影响进行了综述,以期为利用OsNramp5基因突变选育低Cd积累水稻品种提供参考。
李小秀, 吕启明, 袁定阳. OsNramp5基因变异影响水稻重要农艺性状的研究进展[J]. 中国水稻科学, 2022, 36(6): 562-571.
LI Xiaoxiu, LÜ Qiming, YUAN Dingyang. Research Progress on the Effects of OsNramp5 Mutation on Important Agronomic Traits in Rice[J]. Chinese Journal OF Rice Science, 2022, 36(6): 562-571.
基因符号 Gene symbol | 组织表达 Tissue expression | 亚细胞定位 Subcellular localization | 金属转运功能 Metal transport function | 参考文献 Reference |
---|---|---|---|---|
OsNramp1 | 根、叶 Root, leaf | 质膜Plasma membrane | Cd | [ |
OsNramp2 | 地上部 Aboveground part | 液泡膜 Tonoplast | Fe | [ |
OsNramp3 | 维管束 Vascular bundle | 质膜Plasma membrane | Mn | [ |
OsNramp4 | 根 Root | 质膜Plasma membrane | Al | [ |
OsNramp5 | 根 Root | 质膜Plasma membrane | Cd, Mn, Fe | [ |
OsNramp6 | 不详 Unavailable | 质膜Plasma membrane | Fe, Mn | [ |
OsNramp7 | 根、茎、幼穗 Root, culm, young panicle | 不详 Unavailable | Fe, Zn | [ |
表1 水稻NRAMP蛋白家族基因
Table 1. NRAMP protein family genes in rice.
基因符号 Gene symbol | 组织表达 Tissue expression | 亚细胞定位 Subcellular localization | 金属转运功能 Metal transport function | 参考文献 Reference |
---|---|---|---|---|
OsNramp1 | 根、叶 Root, leaf | 质膜Plasma membrane | Cd | [ |
OsNramp2 | 地上部 Aboveground part | 液泡膜 Tonoplast | Fe | [ |
OsNramp3 | 维管束 Vascular bundle | 质膜Plasma membrane | Mn | [ |
OsNramp4 | 根 Root | 质膜Plasma membrane | Al | [ |
OsNramp5 | 根 Root | 质膜Plasma membrane | Cd, Mn, Fe | [ |
OsNramp6 | 不详 Unavailable | 质膜Plasma membrane | Fe, Mn | [ |
OsNramp7 | 根、茎、幼穗 Root, culm, young panicle | 不详 Unavailable | Fe, Zn | [ |

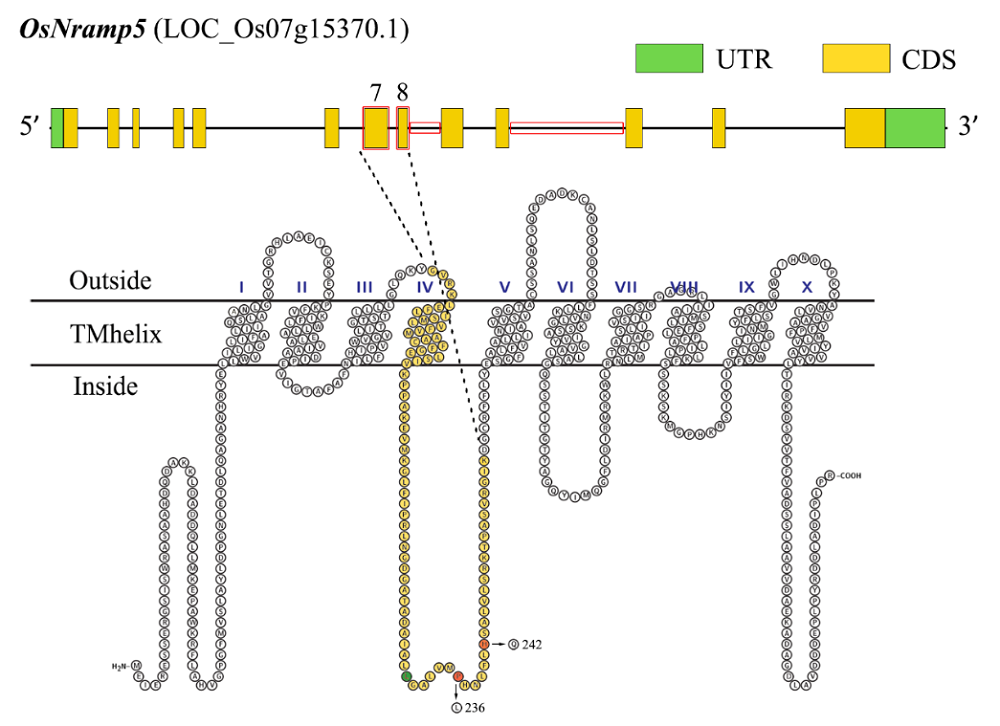

图1 OsNramp5基因结构及其编码蛋白跨膜结构模式图 OsNramp5蛋白根据预测具有10个跨膜结构,第7及第8外显子编码的氨基酸序列在第4及第5跨膜结构域之间,其中绿色和红色标注的氨基酸残基是在部分农艺性状无显著改变的突变体所携带的突变位点;绿色指OsNramp5基因1 bp碱基插入导致在该位置后的氨基酸序列改变,红色指OsNramp5基因单碱基突变导致该位置的氨基酸残基替换。
Fig. 1. OsNramp5 gene structure and transmembrane structure pattern of the protein. According to the prediction, OsNramp5 protein has 10 transmembrane helices, and the amino acid sequence encoded by exon 7 and exon 8 is between transmembrane domain 4 and 5. The green and red labeled amino acid residues are mutant sites with no significant change in agronomic traits in some previous studies. Green means that the insertion of the 1 bp base of the OsNramp5 gene leads to the change of the amino acid sequence after this position, and red means that the SNP mutation of the OsNramp5 gene leads to the substitution of the amino acid residue at this position.
变异位置 Mutation site | 变异来源Mutation method | 遗传背景Genetic background | 变异类型 Mutation type | 籽粒Cd、Mn含量Contents of Cd and Mn in grains | 其他金属含量 Other metal content | 产量及其他性状 Yield and other traits | 参考文献Reference |
---|---|---|---|---|---|---|---|
第1外显子 | CRISPR/Cas9技术 | 南粳46、 淮稻5号 | 1 bp插入 | Cd、Mn显著下降 | 对Fe无显著影响 | 产量、株高、每穗粒数、结实率均显著降低,穗数增加 | [ |
17 bp插入 | Cd、Mn显著下降 | 对Fe无显著影响 | 产量、株高、每穗粒数、结实率均显著降低 | [ | |||
11 bp插入 | Cd、Mn显著下降 | 对Fe无显著影响 | 产量、株高、每穗粒数、结实率均显著降低 | [ | |||
中花11 | 4 bp缺失 | Cd、Mn显著下降 | — | 生长严重受阻,根及地上部干质量显著降低 | [ | ||
第2外显子 | CRISPR/Cas9技术 | 黄华占 | 1 bp插入 | Cd、Mn显著下降 | 对Fe、Zn无显著影响 | 产量、每穗粒数、结实率、秸秆产量均显著降低,米质变劣,分蘖数增加 | [ |
第6外显子 | CRISPR/Cas9技术 | 黄华占 | 2 bp插入 | Cd、Mn显著下降 | 对Fe、Zn无显著影响 | 产量、每穗粒数、结实率、秸秆产量均显著降低,米质变劣 | [ |
第7外显子 | CRISPR/Cas9技术 | 锡稻1号 | 1 bp插入 | Cd显著下降 | — | 产量、其他性状无显著影响 | [ |
EMS诱变 | 9311 | SNP变异 | Cd显著下降 | 对Fe、Zn、Cu无显著影响 | 其他性状无显著影响 | [ | |
第8外显子 | EMS诱变 | Hitomebore | SNP变异 | Cd、Mn显著下降 | — | 产量、其他性状无显著影响 | [ |
第9外显子 | 碳离子束辐射诱变 | 越光 | 1 bp缺失 | Cd<0.05 mg/kg, Mn显著下降 | 对Fe、Zn、Cu无显著 影响 | 产量、其他性状无显著影响 | [ |
CRISPR/Cas9技术 | 华占 | 3 bp缺失+ 1 bp插入 | Cd<0.05 mg/kg, Mn极显著下降 | 对Cu、Zn无显著影响, Fe显著上升 | 产量、其他性状无显著影响 | [ | |
5 bp缺失 | Cd<0.05 mg/kg, Mn极显著下降 | 对Cu、Zn无显著影响, Fe显著上升 | 产量、其他性状无显著影响 | [ | |||
锡稻1号 | 33 bp缺失 | Cd显著下降 | — | 减产44.3%,生长严重受阻,株高降低 | [ | ||
黄华占 | 1 bp插入 | 均显著下降 | 对Fe、Zn无显著 影响 | 产量、每穗粒数、结实率、秸秆生物量均显著降低 | [ | ||
中花11 | 2 bp缺失+ 1 bp插入 | — | — | 产量、千粒重极显著降低,米质变劣 | [ | ||
中花11 | 5 bp缺失+ 1 bp插入 | — | — | 产量、千粒重极显著降低,米质变劣 | [ | ||
第10外显子 | 碳离子束辐射诱变 | 越光 | 433 bp插入 | Cd<0.05 mg/kg,Mn显著下降 | 对Fe、Zn、Cu 无显著影响 | 产量、其他性状无显著影响 | [ |
CRISPR/Cas9技术 | 华占、 五丰B、 五山丝苗、 中早35 | 1-3 bp缺失+ 1 bp插入 | Cd、Mn显著下降 | 对Fe、Zn、Cu、Ca、 As、Se无显著影响 | 减产6.9%,株高、结实率、千粒重小幅降低,有效分蘖略微增加 | [ | |
第5内含子 | T-DNA插入 | 中花11 | 大片段插入 | — | 对K、Ca、Mg、Zn、 Cu无显著影响 | 生长受阻,叶片变黄 | [ |
第8内含子 | 碳离子束辐射诱变 | 隆臻36S、 华恢8612 | 18 bp缺失 | Cd、Mn显著下降 | — | 产量、其他性状无显著影响 | [ |
第10内含子 | 碳离子束辐射诱变 | 隆臻36S、 华恢8612 | 3 bp缺失 | Cd、Mn显著下降 | — | 产量、其他性状无显著影响 | [ |
第12内含子 | T-DNA插入 | 中花11 | 大片段插入 | Cd、Mn显著下降 | 对Fe、Zn、Cu无 显著影响 | 减产89%,生长受阻,叶片严重失绿 | [ |
全基因缺失 | 碳离子束辐射诱变 | 越光 | 227 kb缺失 | Cd<0.05 mg/kg, Mn显著下降 | 对Fe、Zn无显著影响, Cu显著上升 | 产量显著降低,抽穗早,株型小,穗数多,但秸秆产量低 | [ |
全基因缺失 | 60Co辐射诱变 | 粤泰B | 408 kb缺失 | Cd显著下降 | — | — | [ |
表2 OsNramp5不同变异类型对水稻植株金属含量及农艺性状的影响
Table 2. Effects of different mutation types of OsNramp5 on metal content and agronomic traits of rice.
变异位置 Mutation site | 变异来源Mutation method | 遗传背景Genetic background | 变异类型 Mutation type | 籽粒Cd、Mn含量Contents of Cd and Mn in grains | 其他金属含量 Other metal content | 产量及其他性状 Yield and other traits | 参考文献Reference |
---|---|---|---|---|---|---|---|
第1外显子 | CRISPR/Cas9技术 | 南粳46、 淮稻5号 | 1 bp插入 | Cd、Mn显著下降 | 对Fe无显著影响 | 产量、株高、每穗粒数、结实率均显著降低,穗数增加 | [ |
17 bp插入 | Cd、Mn显著下降 | 对Fe无显著影响 | 产量、株高、每穗粒数、结实率均显著降低 | [ | |||
11 bp插入 | Cd、Mn显著下降 | 对Fe无显著影响 | 产量、株高、每穗粒数、结实率均显著降低 | [ | |||
中花11 | 4 bp缺失 | Cd、Mn显著下降 | — | 生长严重受阻,根及地上部干质量显著降低 | [ | ||
第2外显子 | CRISPR/Cas9技术 | 黄华占 | 1 bp插入 | Cd、Mn显著下降 | 对Fe、Zn无显著影响 | 产量、每穗粒数、结实率、秸秆产量均显著降低,米质变劣,分蘖数增加 | [ |
第6外显子 | CRISPR/Cas9技术 | 黄华占 | 2 bp插入 | Cd、Mn显著下降 | 对Fe、Zn无显著影响 | 产量、每穗粒数、结实率、秸秆产量均显著降低,米质变劣 | [ |
第7外显子 | CRISPR/Cas9技术 | 锡稻1号 | 1 bp插入 | Cd显著下降 | — | 产量、其他性状无显著影响 | [ |
EMS诱变 | 9311 | SNP变异 | Cd显著下降 | 对Fe、Zn、Cu无显著影响 | 其他性状无显著影响 | [ | |
第8外显子 | EMS诱变 | Hitomebore | SNP变异 | Cd、Mn显著下降 | — | 产量、其他性状无显著影响 | [ |
第9外显子 | 碳离子束辐射诱变 | 越光 | 1 bp缺失 | Cd<0.05 mg/kg, Mn显著下降 | 对Fe、Zn、Cu无显著 影响 | 产量、其他性状无显著影响 | [ |
CRISPR/Cas9技术 | 华占 | 3 bp缺失+ 1 bp插入 | Cd<0.05 mg/kg, Mn极显著下降 | 对Cu、Zn无显著影响, Fe显著上升 | 产量、其他性状无显著影响 | [ | |
5 bp缺失 | Cd<0.05 mg/kg, Mn极显著下降 | 对Cu、Zn无显著影响, Fe显著上升 | 产量、其他性状无显著影响 | [ | |||
锡稻1号 | 33 bp缺失 | Cd显著下降 | — | 减产44.3%,生长严重受阻,株高降低 | [ | ||
黄华占 | 1 bp插入 | 均显著下降 | 对Fe、Zn无显著 影响 | 产量、每穗粒数、结实率、秸秆生物量均显著降低 | [ | ||
中花11 | 2 bp缺失+ 1 bp插入 | — | — | 产量、千粒重极显著降低,米质变劣 | [ | ||
中花11 | 5 bp缺失+ 1 bp插入 | — | — | 产量、千粒重极显著降低,米质变劣 | [ | ||
第10外显子 | 碳离子束辐射诱变 | 越光 | 433 bp插入 | Cd<0.05 mg/kg,Mn显著下降 | 对Fe、Zn、Cu 无显著影响 | 产量、其他性状无显著影响 | [ |
CRISPR/Cas9技术 | 华占、 五丰B、 五山丝苗、 中早35 | 1-3 bp缺失+ 1 bp插入 | Cd、Mn显著下降 | 对Fe、Zn、Cu、Ca、 As、Se无显著影响 | 减产6.9%,株高、结实率、千粒重小幅降低,有效分蘖略微增加 | [ | |
第5内含子 | T-DNA插入 | 中花11 | 大片段插入 | — | 对K、Ca、Mg、Zn、 Cu无显著影响 | 生长受阻,叶片变黄 | [ |
第8内含子 | 碳离子束辐射诱变 | 隆臻36S、 华恢8612 | 18 bp缺失 | Cd、Mn显著下降 | — | 产量、其他性状无显著影响 | [ |
第10内含子 | 碳离子束辐射诱变 | 隆臻36S、 华恢8612 | 3 bp缺失 | Cd、Mn显著下降 | — | 产量、其他性状无显著影响 | [ |
第12内含子 | T-DNA插入 | 中花11 | 大片段插入 | Cd、Mn显著下降 | 对Fe、Zn、Cu无 显著影响 | 减产89%,生长受阻,叶片严重失绿 | [ |
全基因缺失 | 碳离子束辐射诱变 | 越光 | 227 kb缺失 | Cd<0.05 mg/kg, Mn显著下降 | 对Fe、Zn无显著影响, Cu显著上升 | 产量显著降低,抽穗早,株型小,穗数多,但秸秆产量低 | [ |
全基因缺失 | 60Co辐射诱变 | 粤泰B | 408 kb缺失 | Cd显著下降 | — | — | [ |
