水稻侧根发育突变体lrp1鉴定及表达分析

doi:10.16819/j.1001-7216.2026.241211

摘要/Abstract

摘要：

【目的】本研究旨在通过对水稻OsLRP1(Os01g72490)突变体lrp1的表型鉴定与表达水平分析，探究OsLRP1基因在水稻侧根发育过程中的功能。【方法】首先通过PCR扩增及测序完成lrp1突变体的鉴定。其次，通过生物信息学方法分析OsLRP1蛋白结构、保守结构域、跨膜结构域、信号肽，并通过多序列比对及进化树构建，分析OsLRP1蛋白与其他物种中LRP1蛋白的系统发育关系；通过qRT-PCR技术，检测OsLRP1在水稻不同组织中的表达水平。借助激光共聚焦显微镜，观察OsLRP1蛋白在细胞内的精确定位。然后通过生长素处理实验验证OsLRP1对侧根发育的调控是否受生长素影响。【结果】表型鉴定结果显示，相较于野生型中花11，lrp1侧根原基数目减少32%，侧根数目减少21%；成熟期时，lrp1穗长和百粒重较野生型分别减少12.5%和7.4%；生物信息学分析结果显示OsLRP1基因属于SHI转录因子，编码340个氨基酸。保守结构域分析结果表明，其属于DUF(Domain Of Unknown Function)家族；OsLRP1蛋白无信号肽及跨膜结构。烟草亚细胞定位结果显示OsLRP1蛋白定位于细胞核。qRT-PCR结果显示，OsLRP1在根、茎和叶中均有表达，且在叶中表达量最高。在OsLRP1上游1 kb启动子区域内发现两种生长素响应元件AuxRE，生长素处理实验证实lrp1突变体侧根发育受生长素影响。【结论】综上所述，OsLRP1依赖生长素信号途径调控水稻侧根发育，参与水稻生长发育及抗逆性，进一步揭示了该基因在水稻侧根发育中的关键作用。

关键词: 水稻, 根系发育, 侧根原基, LRP1蛋白

Abstract:

【Objective】This study aims to investigate the function of the OsLRP1 gene (Os01g72490) in rice lateral root development by phenotypic characterization and expression analysis of the lrp1 mutant.【Method】The lrp1 mutant was first identified through PCR amplification and sequencing. Bioinformatics methods were then employed to analyze the protein structure, conserved domains, transmembrane domains, and signal peptides of OsLRP1. Multiple sequence alignment and phylogenetic tree construction were conducted to explore the evolutionary relationship between OsLRP1 and LRP1 proteins from other species. Quantitative real-time PCR (qRT-PCR) was used to detect the expression levels of OsLRP1 in different rice tissues. Confocal laser scanning microscopy was utilized to observe the subcellular localization of the OsLRP1 protein. Finally, an auxin treatment experiment was performed to determine whether the regulation of lateral root development by OsLRP1 is mediated by auxin.【Result】Phenotypic analysis revealed that compared with the wild-type Zhonghua 11, the lrp1 mutant exhibited a 32% reduction in lateral root primordia number and a 21% decrease in lateral root number. At the maturity stage, the panicle length and 100-grain weight of lrp1 were reduced by 12.5% and 7.4%, respectively, compared with the wild-type. Bioinformatics analysis showed that the OsLRP1 gene belongs to the SHI transcription factor family, encoding a protein of 340 amino acids. Conserved domain analysis indicated that it is a member of the DUF (Domain of Unknown Function) family. No signal peptide or transmembrane domain was detected in the OsLRP1 protein. Subcellular localization in tobacco demonstrated that the OsLRP1 protein is localized in the nucleus. qRT-PCR results indicated that OsLRP1 is expressed in roots, stems, and leaves, with the highest expression level in leaves. Two auxin response elements (AuxREs) were identified within the 1-kb promoter region upstream of OsLRP1. The auxin treatment experiment confirmed that lateral root development in the lrp1 mutant is affected by auxin.【Conclusion】In summary, OsLRP1 regulates lateral root development in rice in an auxin signaling dependent manner and is involved in rice growth, development, and stress responses, further elucidating its crucial role in rice lateral root development.

Key words: rice, root development, lateral root primordium, LRP1 protein

易浩昆, 罗堰木, 黄敏, 杜何为, 李曼菲. 水稻侧根发育突变体lrp1鉴定及表达分析[J]. 中国水稻科学, 2026, 40(3): 302-311.

YI Haokun, LUO Yanmu, HUANG Min, DU Hewei, LI Manfei. Identification and Expression Analysis of the Rice Lateral Root Development Mutant lrp1[J]. Chinese Journal OF Rice Science, 2026, 40(3): 302-311.

图/表 10

表1 生物信息学分析所用网站

Table 1. Websites used for bioinformatics analysis

名称 Name	网址 URL
TMHMM-2.0	https://services.healthtech.dtu.dk/services/TMHMM-2.0/
Expasy	https://www.expasy.org/
InterPro	https://www.ebi.ac.uk/interpro/
NPS@:SOPMA	https://npsa.lyon.inserm.fr/cgi-bin/npsa_automat.pl?page=/NPSA/npsa_sopma.html
NetPhos-3.1	https://services.healthtech.dtu.dk/services/NetPhos-3.1/
SignalP 6.0 Server	https://services.healthtech.dtu.dk/services/SignalP-6.0/
NCBI	https://www.ncbi.nlm.nih.gov/
WoLF PSORT II	https://wolfpsort.hgc.jp/
iPSORT	https://ipsort.hgc.jp/
New PLACE	https://www.dna.affrc.go.jp/PLACE/

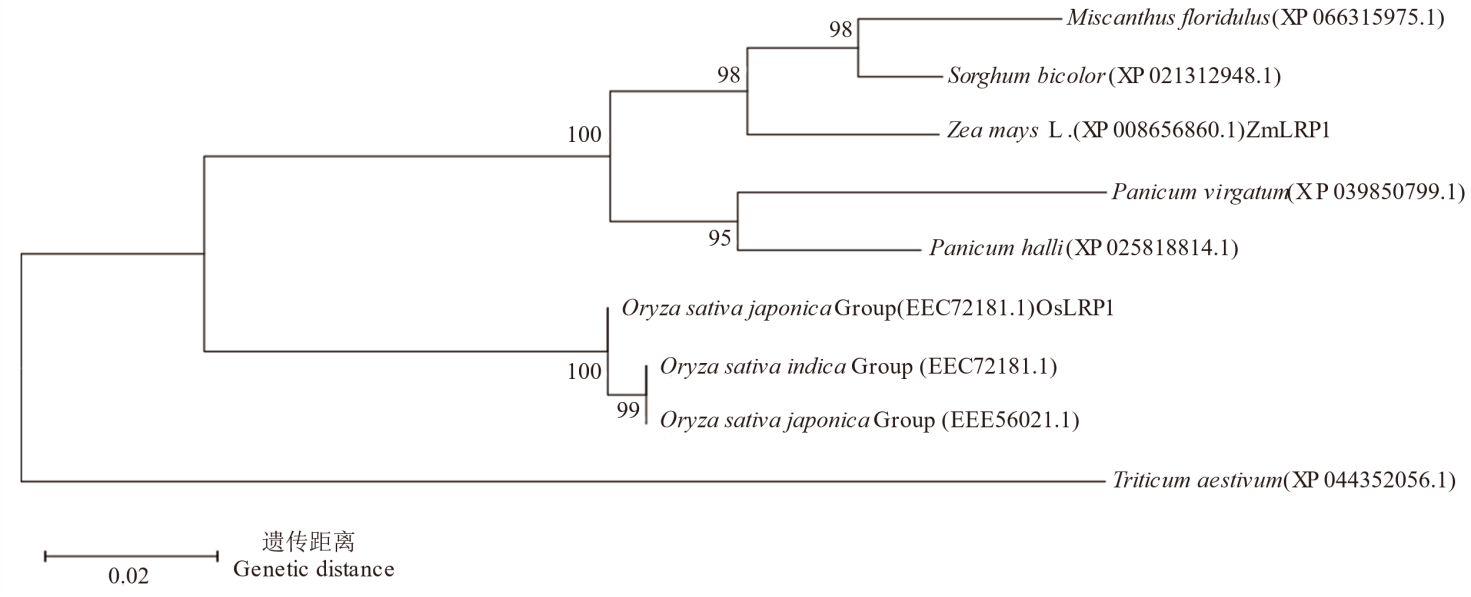

图1 不同物种中LRP1蛋白系统进化树图中标尺表示序列间差异数值的单位长度

Fig. 1. Phylogenetic tree of the LRP1 protein across different species The scale bar in the figure represents the unit length of the number of differences between sequences

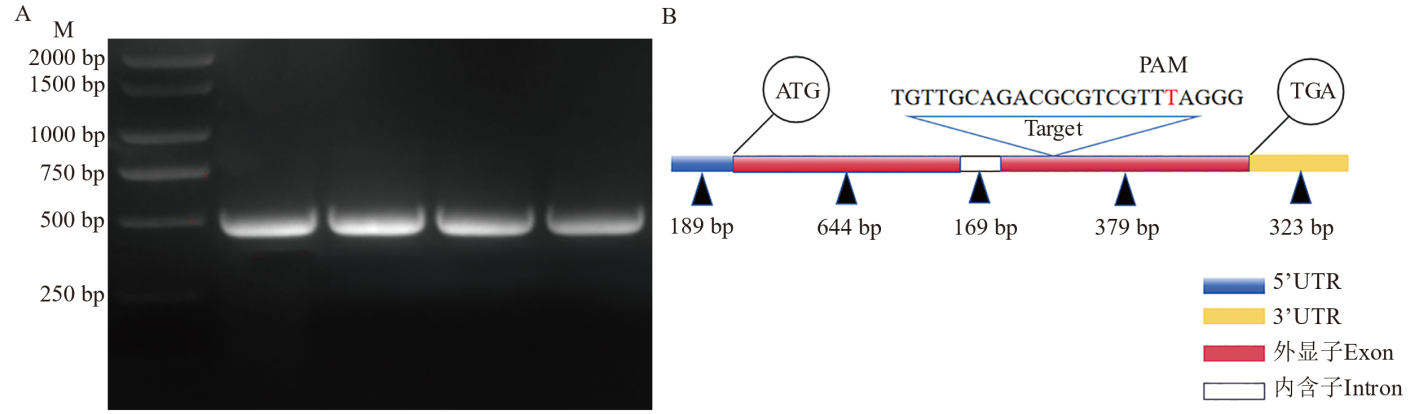

图2 突变体lrp1 PCR扩增电泳图（A）及突变靶点信息（B）图A中左侧两条带以中花11基因组DNA为模板；右侧两条带以lrp1基因组DNA为模板。M：标记。

Fig. 2. PCR amplification electrophoresis of mutant lrp1 (A) and information of mutant targets(B) In figure A, the two leftmost bands were amplified using the genomic DNA of Zhonghua 11 as the template, while the two rightmost bands were amplified using the genomic DNA of lrp1 as the template. M, Marker.

表2 lrp1突变体的生育期

Table 2. Growth periods of the lrp1 mutant d

时期 Period	中花11 Zhonghua 11	lrp1	P值 P-value
出芽期Budding stage	2.9±0.4	3.1±0.4	0.1047
幼苗期Seedling stage	10.3±0.4	10.3±0.5	0.7315
分蘖期Tillering stage	40.4±0.5	40.5±0.7	0.5988
拔节期Jointing stage	60.4±0.5	60.5±0.5	0.5309
抽穗期Heading stage	72.2±0.5	72.3±0.6	0.7699
扬花期Anthesis stage	85.3±0.5	87.1±0.5	6.19×e⁻¹⁵
孕穗期Booting stage	100.3±0.5	102.3±0.5	4.98×e⁻¹⁶
灌浆期Grain filling stage	120.3±0.4	122.4±0.5	8.71×e⁻¹⁷
成熟期Maturity stage	152.3±0.4	154.3±0.4	8.19×e⁻¹⁷

图3 OsLRP1蛋白结构域预测

Fig. 3. Prediction of OsLRP1 protein domain

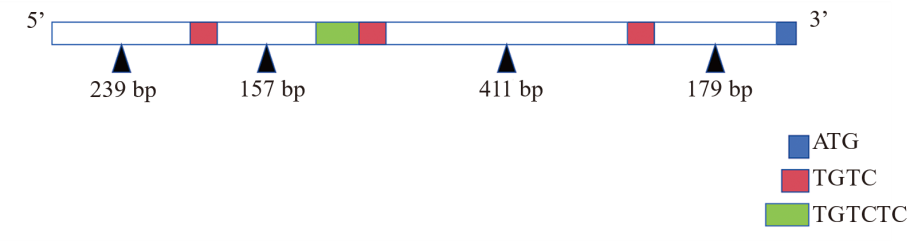

图4 OsLRP1启动子区域顺式作用元件分析

Fig. 4. Analysis of cis-acting elements in the promoter region of OsLRP1

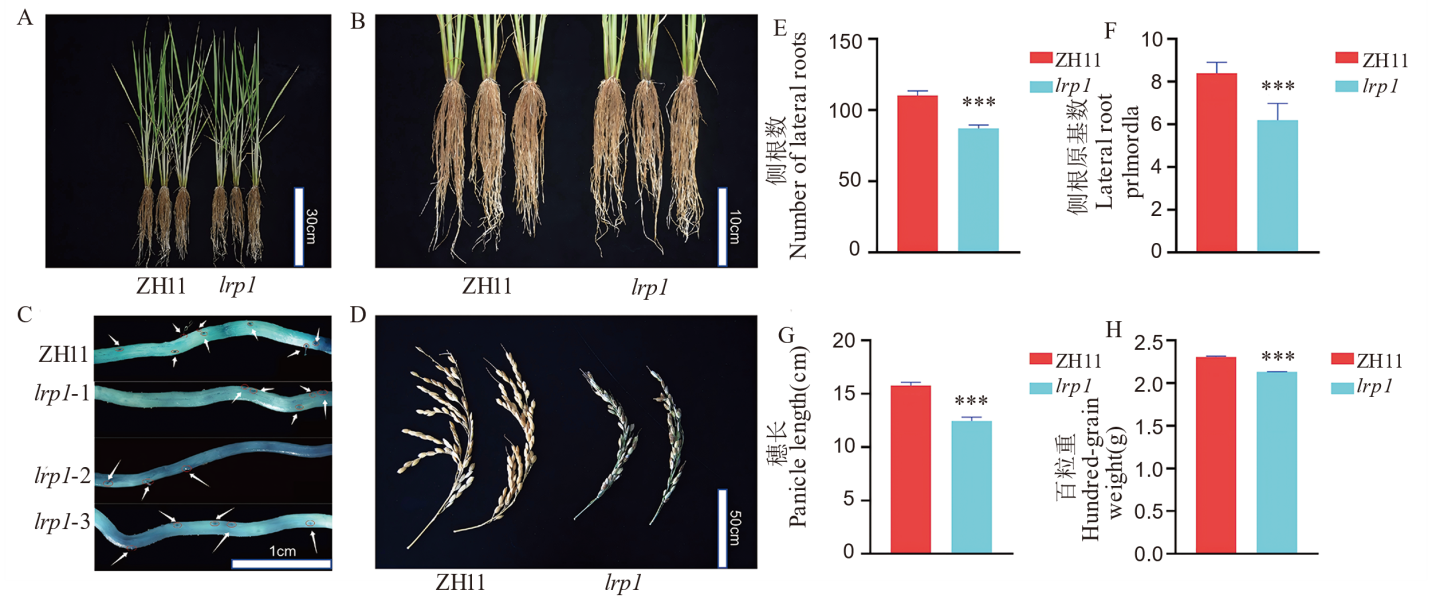

图5 lrp1突变体苗期根系表型及成熟期穗部性状 A：整株表型；B：根系表型；C：亚甲基蓝染色结果（图中黑点为侧根原基）；D：穗部表型；E：侧根数；F：侧根原基数；G：穗长；H：百粒重。图C中红圈及白色箭头示侧根原基部位。

Fig. 5. Root phenotype of lrp1 at the tillering stage and panicle phenotype at the maturity stage A, Whole-plant phenotypes; B, Root system phenotypes; C, Methylene blue staining results (black dots indicate lateral root primordia); D, Panicle phenotypes; E, Statistical graph of lateral root number; F, Statistical graph of lateral root primordia number; G, Statistical graph of panicle length; H, Statistical graph of 100-grain weight. In figure C, Red circles and white arrows indicate the positions of lateral root primordia.

图6 OsLRP1蛋白亚细胞定位结果 A和D图中红色虚线、B和C中白色虚线为烟草细胞轮廓，DAPI为细胞核特异性染料，蓝色荧光信号标注的为细胞核部位。

Fig. 6. Results of subcellular localization of OsLRP1 protein In figures A and D, the red dashed lines indicate the cell contours of tobacco cells. In figures B and C, the white dashed lines indicate the cell contours of tobacco cells. DAPI is a specific nuclear dye, and the blue fluorescence signals mark the positions of the nuclei.

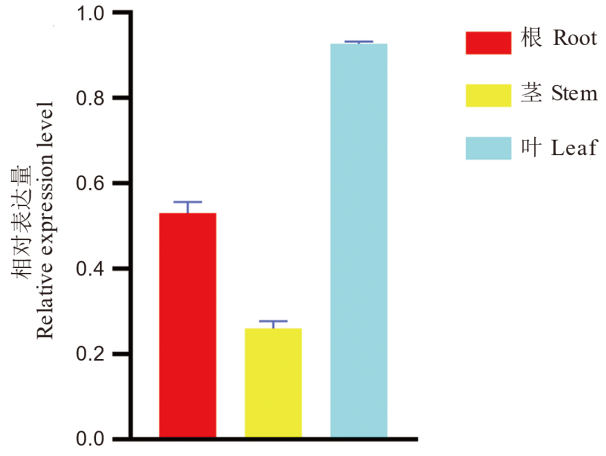

图7 OsLRP1基因相对表达量

Fig. 7. Relative expression level of OsLRP1

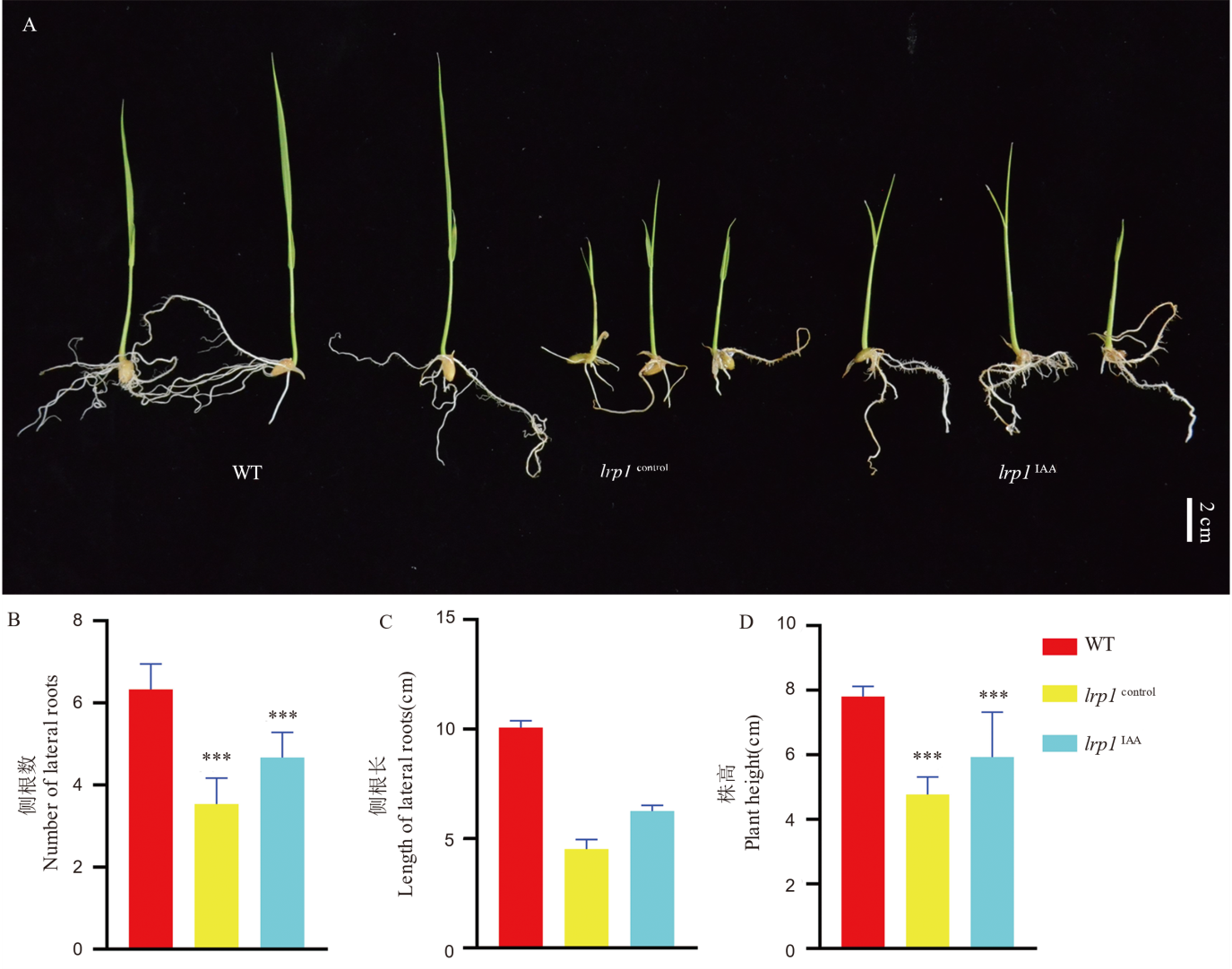

图8 lrp1突变体生长素处理实验结果图A中WT为正常生长的中花11，lrp1control为正常生长的lrp1突变体，lrp1IAA为IAA处理生长的lrp1突变体，每三株为一组分别对应下方标注，标尺 = 2 cm。图B为侧根数，图C为侧根长，图D为株高。

Fig. 8. Results of auxin treatment experiments of lrp1 In figure A, WT represents normally grown Zhonghua 11, lrp1control represents normally grown lrp1 mutant, and lrp1IAA represents IAA-treated lrp1 mutant. Each group of three plants corresponds to the labels below, Bar = 2 cm. Figure B is a bar chart of lateral root number, figure C is a bar chart of lateral root length, and figure D is a bar chart of plant height.

参考文献 42

[1]	杨建昌. 水稻根系形态生理与产量、品质形成及养分吸收利用的关系[J]. 中国农业科学, 2011, 44(1): 36-46.
	Yang J C. Relationships of rice root morphology and physiology with the formation of grain yield and quality and the nutrient absorption and utilization[J]. Scientia Agricultura Sinica, 2011, 44(1): 36-46. (in Chinese with English abstract)
[2]	Liu. The role of brassinosteroids in plant development[J]. Annual Review of Plant Biology, 2018, 69: 611-634.
[3]	Yamauchi T, Tanaka A, Inahashi H, Nishizawa N K, Tsutsumi N, Inukai Y, Nakazono M. Fine control of aerenchyma and lateral root development through AUX/IAA- and ARF-dependent auxin signaling[J]. Proceedings of the National Academy of Sciences of the United States of America, 2019, 116(41): 20770-20775.
[4]	Jansen L, Roberts I, de Rycke R, Beeckman T. Phloem-associated auxin response maxima determine radial positioning of lateral roots in maize[J]. Philosophical Transactions of the Royal Society B: Biological Sciences, 2012, 367(1595): 1525-1533.
[5]	Bell J, McCully M E. A histological study of lateral root initiation and development in Zea mays[J]. Protoplasma, 1970, 70: 179-205.
[6]	Torres-Martínez H H, Napsucialy-Mendivil S, Dubrovsky J G. Cellular and molecular bases of lateral root initiation and morphogenesis[J]. Current Opinion in Plant Biology, 2022, 65: 102-115.
[7]	Smith D L, Fedoroff N V. LRP1, a gene expressed in lateral and adventitious root primordia of Arabidopsis[J]. Plant Cell, 1995, 7(6): 735-745.
[8]	Lin W, Zhou X, Tang W, Takahashi K, Pan X, Dai J, Ren H, Zhu X, Pan S, Zheng H, Gray W M, Xu T, Kinoshita T, Yang Z. TMK-based cell-surface auxin signalling activates cell-wall Acidification[J]. Nature, 2021, 599(7884): 278-282.
[9]	张莉, 岳晶晶, 张静. 植物的向光性研究进展[J]. 分子植物育种, 2018, 16(6): 2015-2027.
	Zhang L, Yue J J, Zhang J. Research advance of phototropism in plants[J]. Molecular Plant Breeding, 2018, 16(6): 2015-2027. (in Chinese with English abstract)
[10]	Lv B, Wei K, Hu K, Tian T, Zhang F, Yu Z, Zhang D, Su Y, Sang Y, Zhang X, Ding Z. MPK14-mediated auxin signaling controls lateral root development via ERF13-regulated very-long-chain fatty acid biosynthesis[J]. Molecular Plant, 2021, 14(2): 285-297.
[11]	Du Y, Scheres B. Lateral root formation and the multiple roles of auxin[J]. Journal of Experimental Botany, 2018, 69(2): 155-167.
[12]	de Rybel B, Vassileva V, Parizot B, Demeulenaere M, Grunewald W, Audenaert D, van Campenhout J, Overvoorde P, Jansen L, Vanneste S, Möller B, Wilson M, Holman T, van Isterdael G, Brunoud G, Vuylsteke M, Vernoux T, de Veylder L, Inzé D, Weijers D, Bennett M J, Beeckman T. A novel aux/IAA28 signaling cascade activates GATA23-dependent specification of lateral root founder cell identity[J]. Current Biology, 2010, 20(19): 1697-1706.
[13]	Gibbs D J, Voß U, Harding S A, Fannon J, Moody L A, Yamada E, Swarup K, Nibau C, Bassel G W, Choudhary A, Lavenus J, Bradshaw S J, Stekel D J, Bennett M J, Coates J C. AtMYB93 is a novel negative regulator of lateral root development in Arabidopsis[J]. New Phytologist, 2014, 203(4): 1194-1207.
[14]	Kumpf R P, Shi C L, Larrieu A, Stø I M, Butenko M A, Péret B, Riiser E S, Bennett M J, Aalen R B. Floral organ abscission peptide IDA and its HAE/HSL2 receptors control cell separation during lateral root emergence[J]. Proceedings of the National Academy of Sciences of the United States of America, 2013, 110(13): 5235-5240.
[15]	Zhu Q, Shao Y, Ge S, Zhang M, Zhang T, Hu X, Liu Y, Walker J, Zhang S, Xu J. A MAPK cascade downstream of IDA-HAE/HSL2 ligand-receptor pair in lateral root emergence[J]. Nature Plants, 2019, 5(4): 414-423.
[16]	Lü B, Wei K, Hu K, Tian T, Zhang F, Yu Z, Zhang D, Su Y, Sang Y, Zhang X, Ding Z. MPK14-mediated auxin signaling controls lateral root development via ERF13-regulated very-long-chain fatty acid biosynthesis[J]. Molecular Plant, 2021, 14(2): 285-297.
[17]	Hofhuis H, Laskowski M, Du Y, Prasad K, Grigg S, Pinon V, Scheres B. Phyllotaxis and rhizotaxis in Arabidopsis are modified by three PLETHORA transcription factors[J]. Current Biology, 2013, 23(11): 956-962.
[18]	Dello Ioio R, Nakamura K, Moubayidin L, Perilli S, Taniguchi M, Morita M T, Aoyama T, Costantino P, Sabatini S. A genetic framework for the control of cell division and differentiation in the root meristem[J]. Science, 2008, 322(5906): 1380-1384.
[19]	Tian Q, Uhlir N J, Reed J W. Arabidopsis SHY2/IAA3 inhibits auxin-regulated gene expression[J]. Plant Cell, 2002, 14(2): 301-319.
[20]	Teale W D, Paponov I A, Palme K. Auxin in action: Signalling, transport and the control of plant growth and development[J]. Nature Reviews Molecular Cell Biology, 2006, 7(11): 847-859.
[21]	di Mambro R, De Ruvo M, Pacifici E, Salvi E, Sozzani R, Benfey P N, Busch W, Novak O, Ljung K, Di Paola L, Marée A F M, Costantino P, Grieneisen V A, Sabatini S. Auxin minimum triggers the developmental switch from cell division to cell differentiation in the Arabidopsis root[J]. Proceedings of the National Academy of Sciences of the United States of America, 2017, 114(36): 7641-7649.
[22]	朱振兴. OsIAAll介导的生长素信号调控水稻侧根的起始[D]. 杭州: 浙江大学, 2011.
	Zhu Z X. OsIAA11-mediated auxin signaling controls lateral root initiation in rice[D]. Hangzhou: Zhejiang University, 2011. (in Chinese with English abstract)
[23]	Kawai T, Shibata K, Akahoshi R, Nishiuchi S, Takahashi H, Nakazono M, Kojima T, Nosaka-Takahashi M, Sato Y, Toyoda A, Lucob-Agustin N, Kano-Nakata M, Suralta R R, Niones J M, Chen Y, Siddique K H M, Yamauchi A, Inukai Y. WUSCHEL-related homeobox family genes in rice control lateral root primordium size[J]. Proceedings of the National Academy of Sciences of the United States of America, 2022, 119(1): e2101846119.
[24]	张忠臣. 水稻侧根发育基因OsCYP2(cyclophilin2)的克隆和功能分析[D]. 杭州: 浙江大学, 2007.
	Zhang Z C. Cloning and functional analysis of OsCYPS(cyclophilin2) in regulation of lateral root development[D]. Hangzhou: Zhejiang University, 2007. (in Chinese with English abstract)
[25]	Zhao H, Ma T, Wang X, Deng Y, Ma H, Zhang R, Zhao J. OsAUX1 controls lateral root initiation in rice (Oryza sativa L.)[J]. Plant Cell and Environment, 2015, 38(11): 2208-2222.
[26]	Inahashi H, Shelley I J, Yamauchi T, Nishiuchi S, Takahashi-Nosaka M, Matsunami M, Ogawa A, Noda Y, Inukai Y. OsPIN2, which encodes a member of the auxin efflux carrier proteins, is involved in root elongation growth and lateral root formation patterns via the regulation of auxin distribution in rice[J]. Physiologia Plantarum, 2018, 164(2): 216-225.
[27]	Kitomi Y, Inahashi H, Takehisa H, Sato Y, Inukai Y. OsIAA13-mediated auxin signaling is involved in lateral root initiation in rice[J]. Plant Science, 2012, 190: 116-122.
[28]	贾利强. 水稻侧根发育基因OsSLR1的克隆和功能研究[D]. 杭州: 浙江大学, 2008.
	Jia L Q. Cloning and functional analysis of rice lateral root development related gene OsSLR1[D]. Hangzhou: Zhejiang University, 2011. (in Chinese with English abstract)
[29]	Zhang Y, von Behrens I, Zimmermann R, Ludwig Y, Hey S, Hochholdinger F. LATERAL ROOT PRIMORDIA 1 of maize acts as a transcriptional activator in auxin signalling downstream of the Aux/IAA gene rootless with undetectable meristem 1[J]. Journal of Experimental Botany, 2015, 66(13): 3855-3863.
[30]	李曼菲. KNR6调控玉米行粒数的分子机理研究[D]. 武汉: 华中农业大学, 2021.
	Li M F. The molecular mechanism of KNR6 regulating kernel number per row in maize[D]. Wuhan: Huazhong Agricultural University, 2021. (in Chinese with English abstract)
[31]	杜何为, 黄敏, 何凯. 水稻、玉米、小麦成熟种子总RNA的快速提取[J]. 分子植物育种, 2015, 13(9): 2091-2094.
	Du H W, Huang M, He K. A method of rapid isolation of total RNA from mature seeds in rice, maize, and wheat[J]. Molecular Plant Breeding, 2015, 13(9): 2091-2094. (in Chinese with English abstract)
[32]	Livak K J, Schmittgen T D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta CT) method[J]. Methods, 2001, 25(4): 402-408.
[33]	罗成科, 肖国举, 李明. 不同未知功能结构域蛋白家族(DUFs)基因在植物中的生物学功能[J]. 植物生理学报, 2015, 51(2): 153-158.
	Luo C K, Xiao G J, Li M. Biological functions of different domains of unknown function protein families (DUFs) genes in plants[J]. Plant Physiology Journal, 2015, 51(2): 153-158. (in Chinese with English abstract)
[34]	Lü P, Wan J, Zhang C, Hina A, Al Amin G M, Begum N, Zhao T. Unraveling the diverse roles of neglected genes containing domains of unknown function (DUFs): Progress and Perspective[J]. International Journal of Molecular Sciences, 2023, 24(4): 4187.
[35]	Jacobson M P, Kalyanaraman C, Zhao S, Tian B. Leveraging structure for enzyme function prediction: Methods, opportunities, and challenges[J]. Trends in Biochemical Sciences. 2014, 39(8): 363-71.
[36]	Zhang Y, Mitsuda N, Yoshizumi T, Horii Y, Oshima Y, Ohme-Takagi M, Matsui M, Kakimoto T. Two types of bHLH transcription factor determine the competence of the pericycle for lateral root initiation[J]. Nature Plants, 2021, 7(5): 633-643.
[37]	Shang E, Wei K, Lü B, Zhang X, Lin X, Ding Z, Leng J, Tian H, Ding Z. VIK-mediated auxin signaling regulates lateral root development in Arabidopsis[J]. Advanced Science, 2024, 11(33): e2402442.
[38]	Xuan L, Li J, Jiang Y, Shi M, Zhu Y, Bao X, Gong Q, Xue H W, Yu H, Liu L. MCTP controls nucleocytoplasmic partitioning of AUXIN RESPONSE FACTORs during lateral root development[J]. Developmental Cell, 2024, 59(24): 3229-3244.e5.
[39]	Ulmasov T, Hagen G, Guilfoyle T J. ARF1, a transcription factor that binds to auxin response elements[J]. Science, 1997, 276(5320): 1865-1868.
[40]	Guilfoyle T J, Hagen G. Auxin response factors[J]. Current Opinion in Plant Biology, 2007, 10(5): 453-460.
[41]	Zemlyanskaya E V, Wiebe D S, Omelyanchuk N A, Levitsky V G, Mironova V V. Meta-analysis of transcriptome data identified TGTCNN motif variants associated with the response to plant hormone auxin in Arabidopsis thaliana L[J]. Journal of Bioinformatics and Computational Biology, 2016, 14(2): 1641009.
[42]	Diao D, Hu X, Guan D, Wang W, Yang H, Liu Y. Genome-wide identification of the ARF (auxin response factor) gene family in peach and their expression analysis[J]. Molecular Biology Reports, 2020, 47(6): 4331-4344.
