基于高密度遗传图谱的水稻分蘖角度QTL定位与分析

doi:10.16819/j.1001-7216.2026.241103

摘要/Abstract

摘要：

【目的】分蘖角度是水稻株型的重要组成部分，直接影响水稻的种植密度并最终影响水稻产量。挖掘和研究新的调控水稻分蘖角度QTL/基因并应用于株型改良，是提高水稻产量的有效方式之一。【方法】本研究利用印度粳稻品种M494和籼稻品种中9B杂交并自交衍生的重组自交系(Recombinant inbred lines，RILs)群体为试验材料，于2021至2023年在中国水稻研究所浙江省富阳与海南省陵水试验基地种植，基于重测序法构建的高密度Bin图谱进行水稻分蘖角度QTL定位与分析。【结果】3年共检测到9个QTL，分布于1、3、9、11和12号染色体上，单个QTL可解释的表型贡献率介于2.54%~57.00%，加性效应均来源于大分蘖角度亲本M494。其中主效分蘖角度QTL qTA9-1定位在9号染色体的20.71−20.80 Mb区间，物理图谱区间为86.36 kb，且在2021与2022年重复被检测到，贡献率最高可达57.00%，该区间覆盖已克隆分蘖角度基因TAC1。RT-PCR结果表明TAC1在大分蘖角度株系M109中的表达量显著高于小分蘖角度株系M67。进一步测序分析发现，与qta9-1基因型株系M67相比，qTA9-1基因型株系M109中TAC1在第4内含子的3’剪接位点发生了C到T的突变，为已报道的TAC1功能性SNP位点，推测qTA9-1即为TAC1。2021和2022年在3号染色体15.20−16.00 Mb区间重复检测到1个新的控制分蘖角度的QTL，其与主效分蘖角度QTL qTA9-1存在上位性互作；在12号染色体21.10−22.02 Mb区间重复检测到1个调控水稻分蘖角度的微效QTL位点。【结论】本研究利用M494和Z9B杂交构建的RIL群体，结合高密度遗传图谱，共检测到9个分蘖角度相关QTL，包括已克隆基因TAC1，在3号染色体检测到1个新的分蘖角度QTL。上述结果为进一步开展水稻分蘖角度基因的精细定位和水稻品种株型的遗传改良提供了理论基础和基因资源。

关键词: 水稻, 分蘖角度, 高密度遗传图谱, QTL定位分析

Abstract:

【Objective】Tiller angle is an important component of rice plant type, which directly affects rice planting density and ultimately influences rice yield. Exploring and studying new QTLs/genes that regulate rice tiller angle and applying them to plant type improvement is one of the effective ways to improve rice yield. 【Method】The recombinant inbred lines (RILs) derived from the crossing and selfing of the Indian japonica rice variety M494 and indica rice variety Zhong 9B were used as experimental materials. They were planted at Fuyang and Lingshui experimental bases of China National Rice Research Institute in Zhejiang and Hainan Province from 2021 to 2023. QTL mapping and analysis of rice tiller angle were conducted based on the high-density Bin map constructed by resequencing method. 【Result】A total of nine QTLs were detected in three years, distributed on chromosomes 1, 3, 9, 11 and 12. The phenotypic variation explained by each QTL ranged from 2.54% to 57.00%, and the additive effects were all derived from the large tiller angle parent M494. Among them, the major QTL qTA9-1 for tiller angle was located in the range of 20.71−20.80 Mb on chromosome 9, with a physical map interval of 86.36 kb region. Moreover, it was repeatedly detected in 2021 and 2022, and the highest contribution rate could reach 57.00%. This region overlapped with the cloned tiller angle gene TAC1. The RT-PCR results showed that the expression level of TAC1 in the large tiller angle genotype line M109 was significantly higher than that in the small tiller angle genotype line M67. Further sequencing analysis revealed that compared with the qta9-1 genotype line M67, the qTA9-1 genotype line M109 had a C to T mutation at the 3' splice site of intron 4 of the reported TAC1, which is the TAC1 functional SNP, and we speculate that qTA9-1 is TAC1. In 2021 and 2022, a novel QTL controlling tiller angle was repeatedly detected in the 15.20−16.00 Mb interval of chromosome 3, which exhibited epistatic interaction with the major tiller angle QTL qTA9-1. A minor QTL locus regulating tillering angle was repeatedly detected in the 21.10−22.02 Mb interval of chromosome 12. 【Conclusion】Nine QTLs for tiller angle were detected using the RIL population constructed by crossing M494 with Zhong 9B combining with the high-density genetic map, including the cloned gene TAC1, and a novel QTL for tiller angle was detected on chromosome 3. The above results provide a theoretical basis and genetic resources for further fine mapping of rice tiller angle genes and genetic improvement of plant type of rice varieties.

Key words: rice, tiller angle, high-density genetic map, QTL mapping analysis

王召君, 何雨宣, 刘浚蓉, 徐群, 章孟臣, 王珊, 孙燕飞, 魏兴华, 杨窑龙, 郭晓红, 冯跃. 基于高密度遗传图谱的水稻分蘖角度QTL定位与分析[J]. 中国水稻科学, 2026, 40(3): 341-350.

WANG Zhaojun, HE Yuxuan, LIU Junrong, XU Qun, ZHANG Mengchen, WANG Shan, SUN Yanfei, WEI Xinghua, YANG Yaolong, GUO Xiaohong, FENG Yue. QTL Mapping and Analysis of Tiller Angle Based on High Density Genetic Map in Rice[J]. Chinese Journal OF Rice Science, 2026, 40(3): 341-350.

图/表 10

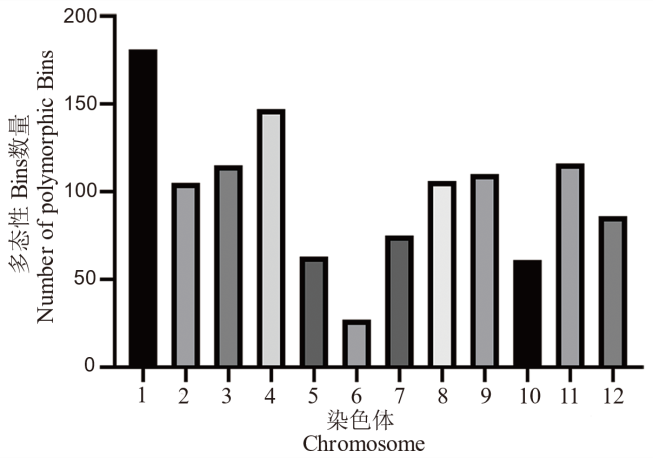

图1 多态性Bin标记在水稻染色体上的分布

Fig. 1. Distribution of polymorphic Bin markers on rice chromosomes

表1 本研究中用到的引物序列

Table 1. Primer sequence used in the study

基因名 Gene name	正向引物(5'→3') Forward primer (5'→3')	反向引物（5'→3'） Reverse primer (5'→3')
TAC1	GTGCAAGTGTGACTGAGCAA	AGCGTGCCAATTGCAAGTAT
Actin	TGCTATGTACGTCGCCATCCAG	AATGAGTAACCACGCTCCGTCA

表2 亲本和RIL群体2021―2023年分蘖角度表型值

Table 2. Phenotypic values of tiller angle of parents and RIL population in 2021, 2022 and 2023

年份 Year	RIL群体RIL population					亲本Parent
年份 Year	平均值 Mean	变幅 Range	偏度 Skewness	峰度 Kurtosis	标准差 Standard deviation	M494	Z9B
2021 2022 2023	11.4	7.5~22.5	0.77	−0.17	3.97	16.2	7.0
2022	11.5	5.8~22.0	0.74	−0.27	3.67
2023	12.6	5.5~27.2	1.07	2.07	3.79

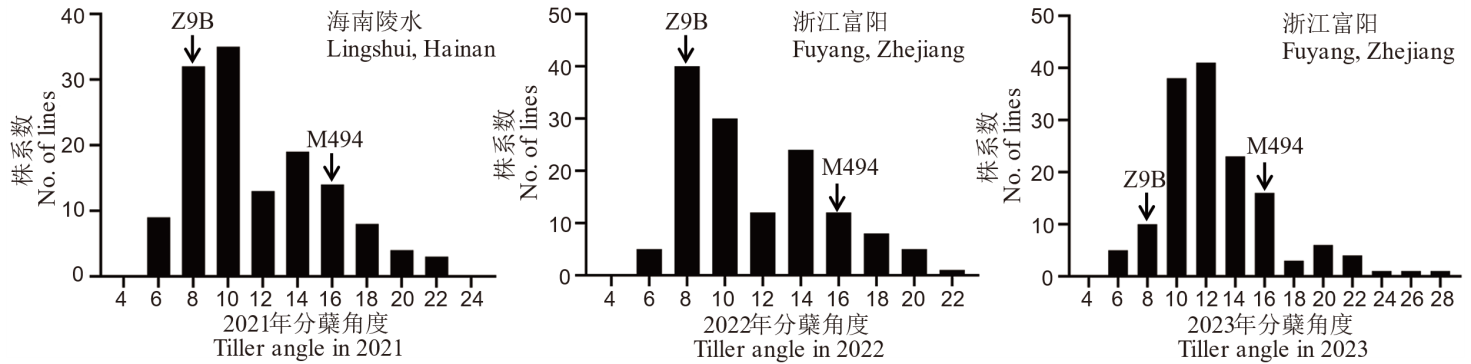

图2 RIL群体2021−2023年分蘖角度表型频率分布

Fig. 2. Frequency distribution map of tiller angle in RIL population in 2021, 2022 and 2023

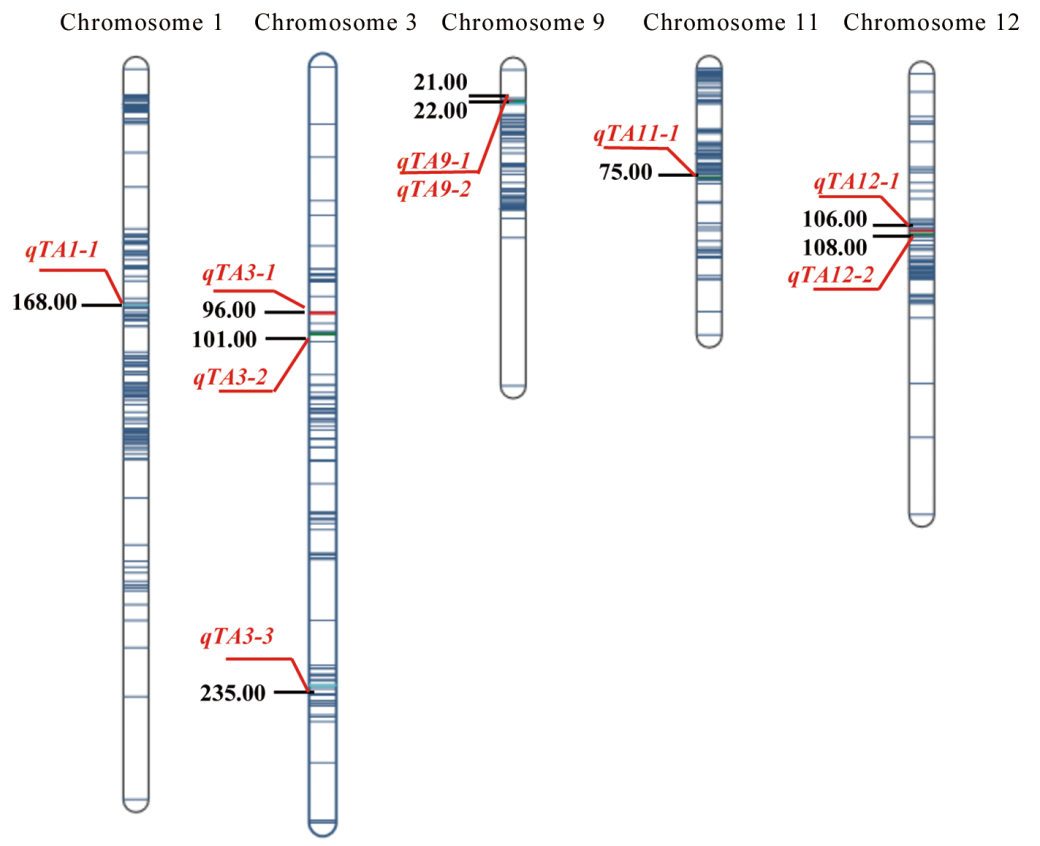

图3 水稻分蘖角度QTL定位

Fig. 3. QTL mapping of tiller angle in rice

表3 水稻分蘖角度的QTL分析

Table 3. QTL analysis of tiller angle in rice

年份 Year	染色体 Chromosome	位点 Locus	峰值标记 Peak marker	LOD值 LOD value	表型贡献率 Variation explained(%)	加性效应 Additive effect	物理位置 Position (Mb)	定位区间 Location interval (kb)
2021	3	qTA3-1	Bin03-96	3.69	5.08	0.93	15.70−16.00	299.52
2021/2022	9	qTA9-1	Bin09-21	24.70/34.60	49.27/57.00	2.90/2.92	20.71−20.80	86.36
2021	12	qTA12-1	Bin12-107	3.36	4.57	0.88	21.80−22.02	222.59
2022	3	qTA3-2	Bin03-101	2.77	2.54	0.61	15.20−15.40	201.72
2022	11	qTA11-1	Bin11-75	4.99	4.92	0.86	9.90−12.60	2702.55
2022	12	qTA12-2	Bin12-108	3.47	3.21	0.69	21.10−21.20	98.76
2023	1	qTA1-1	Bin01-168	4.56	8.34	1.23	42.10−42.87	772.47
2023	3	qTA3-3	Bin03-235	2.86	4.96	0.93	26.60−27.70	908.32
2023	9	qTA9-2	Bin09-22	9.95	19.07	1.83	20.10−20.40	298.66

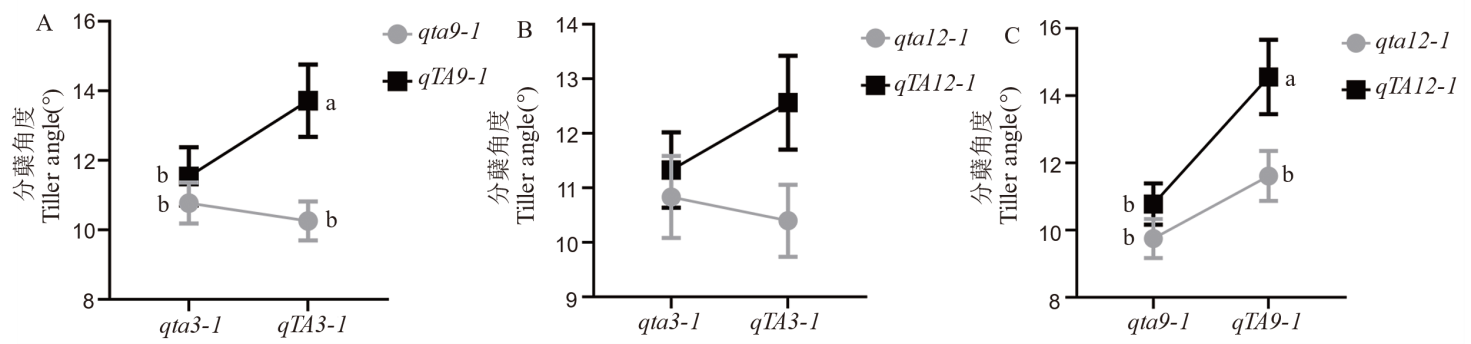

图4 3个分蘖角度QTL间的互作分析 TA表示大角度的等位基因型，ta表示小角度的等位基因型。不同小写字母表示差异显著(P<0.05)。

Fig. 4. Interaction analysis among three QTLs for tiller angle TA represents the large tiller angle allele, ta represents the small tiller angle allele. Different lowercase letters indicate significant differences(P<0.05).

图5 水稻分蘖角度QTL间的上位性效应分析

Fig. 5. Epistatic effect analysis among QTLs for tiller angle in rice

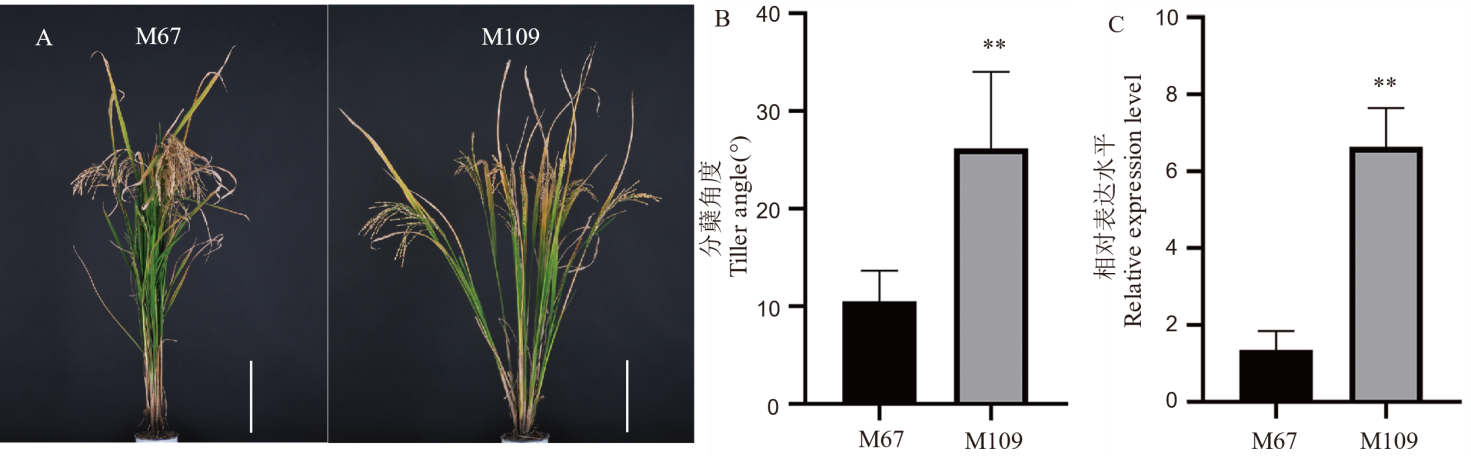

图6 主效QTL qTA9-1两种等位基因型株系分蘖角度表型和TAC1表达量比较 A：M67和M109分蘖角度比较(比例尺: 20 cm)；B：M67和M109的分蘖角度；C：TAC1表达量比较。**P<0.01。

Fig. 6. Comparison of tiller angle and TAC1 expression between two alletic lines of the major QTL qTA9-1 A, Comparison of tiller angle phenotype between M67 and M109 (Scale bar, 20 cm); B, Tiller angle of M67 and M109; C, Comparison of TAC1 expression. **P<0.01.

图7 主效QTL qTA9-1候选基因TAC1的序列对比

Fig. 7. Comparison between candidate gene sequences of TAC1 and major QTL qTA9-1

参考文献 31

[1]	朱亮, 薛蓬勃, 李国强, 黄婧, 金健. 全基因组结合位点分析揭示LAZY1控制水稻分蘖角度的下游调控网络[J]. 基因组学与应用生物学, 2022, 41(7): 1539-1549.
	Zhu L, Xue P B, Li G Q, Huang J, Jin J. Genome-wide binding site analysis of LAZY1 reveals its downstream regulating network in controlling rice tiller angle[J]. Genomics and Applied Biology, 2022, 41(7): 1539-1549. (in Chinese)
[2]	蔡跃, 肖宁, 陈梓春, 吴云雨, 余玲, 刘建菊, 时薇, 潘存红, 李育红, 周长海, 季红娟, 黄年生, 张小祥, 李爱宏. 调控水稻分蘖角的分子机制研究进展[J]. 植物遗传资源学报, 2023, 24(2): 332-339.
	Cai Y, Xiao N, Chen Z C, Wu Y Y, Yu L, Liu J J, Shi W, Pan C H, Li Y H, Zhou C H, Ji H J, Huang N S, Zhang X X, Li A H. Research progress on molecular mechanisms regulating rice tiller angle[J]. Journal of Plant Genetic Resources, 2023, 24(2): 332-339. (in Chinese with English abstract)
[3]	王文广, 王永红. 作物株型与产量研究进展与展望[J]. 中国科学: 生命科学, 2021, 51(10): 1366-1375.
	Wang W G, Wang Y H. Crop plant architecture and grain yields[J]. Scientia Sinica (Vitae), 2021, 51(10): 1366-1375. (in Chinese with English abstract)
[4]	黄卫衡, 吕启明, 辛业芸. 水稻分蘖角度的研究进展[J]. 杂交水稻, 2019, 34(3): 1-7.
	Huang W H, Lü Q M, Xin Y Y. Research progress on rice tiller angle[J]. Hybrid Rice, 2019, 34(3): 1-7. (in Chinese with English abstract)
[5]	余传元, 刘裕强, 江玲, 王春明, 翟虎渠, 万建民. 水稻分蘖角度的QTL定位和主效基因的遗传分析[J]. 遗传学报, 2005, 32(9): 948-954.
	Yu C Y, Liu Y Q, Jiang L, Wang C M, Zhai H Q, Wan J M. QTLs mapping and genetic analysis of tiller angle in rice (Oryza sativa L.)[J]. Acta Genetica Sinica, 2005, 32(9): 948-954. (in Chinese with English abstract)
[6]	刘文芳, 孙加雷, 王凯, 范智权, 胡东辉, 杨江义, 蔡中全. 长雄蕊野生稻分蘖角度QTL定位及遗传分析[J]. 基因组学与应用生物学, 2018, 37(4): 1597-1603.
	Liu W F, Sun J L, Wang K, Fan Z Q, Hu D H, Yang J Y, Cai Z Q. QTL mapping and genetic analysis of tiller angle in Oryza longistaminata[J]. Genomics and Applied Biology, 2018, 37(4): 1597-1603. (in Chinese with English abstract)
[7]	刘化龙, 杨洛淼, 徐善斌, 刘华东, 邹德堂. 多环境下水稻株型相关性状QTL解析[J]. 东北农业大学学报, 2020, 51(4): 1-9.
	Liu H L, Yang L M, Xu S B, Liu H D, Zou D T. QTL analysis on plant type related traits of rice under multi-environment[J]. Journal of Northeast Agricultural University, 2020, 51(4): 1-9. (in Chinese with English abstract)
[8]	He J, Shao G, Wei X, Huang F, Sheng Z, Tang S, Hu P. Fine mapping and candidate gene analysis of qTAC8, a major quantitative trait locus controlling tiller angle in rice (Oryza sativa L.)[J]. PLoS One, 2017, 12(5): e0178177.
[9]	董少玲, 张颖慧, 张亚东, 陈涛, 赵庆勇, 朱镇, 周丽慧, 姚姝, 赵凌, 王才林. 水稻重组自交系分子遗传图谱构建及分蘖角的QTL检测[J]. 江苏农业学报, 2012, 28(2): 236-242.
	Dong S L, Zhang Y H, Zhang Y D, Chen T, Zhao Q Y, Zhu Z, Zhou L H, Yao S, Zhao L, Wang C L. Construction of molecular genetic linkage map based on a rice RIL population and detection of QTL for tiller angle[J]. Jiangsu Journal of Agricultural Sciences, 2012, 28(2): 236-242. (in Chinese with English abstract)
[10]	Zhao D D, Jang Y H, Farooq M, Park J R, Kim E G, Du X X, Jan R, Kim K H, Lee S I, Lee G S, Kim K M. Identification of a major QTL and validation of related genes for tiller angle in rice based on QTL analysis[J]. International Journal of Molecular Sciences, 2022, 23(9): 5192.
[11]	朱裕敬, 桂金鑫, 龚成云, 罗新阳, 石居斌, 张海清, 贺记外. 全基因组关联分析定位水稻分蘖角度QTL[J]. 中国水稻科学, 2024, 38(3): 266-276.
	Zhu Y J, Gui J X, Gong C Y, Luo X Y, Shi J B, Zhang H Q, He J W. QTL mapping for tiller angle in rice by genome-wide association analysis[J]. Chinese Journal of Rice Science, 2024, 38(3): 266-276. (in Chinese with English abstract)
[12]	Yu B, Lin Z, Li H, Li X, Li J, Wang Y, Zhang X, Zhu Z, Zhai W, Wang X, Xie D, Sun C. TAC1, a major quantitative trait locus controlling tiller angle in rice[J]. The Plant Journal, 2007, 52(5): 891-898.
[13]	Dong H, Zhao H, Xie W, Han Z, Li G, Yao W, Bai X, Hu Y, Guo Z, Lu K, Yang L, Xing Y. A novel tiller angle gene, TAC3 together with TAC1 and D2largely determine the natural variation of tiller angle in rice cultivars[J]. PLoS Genetics, 2016, 12(11): e1006412.
[14]	Zhang W, Tan L, Sun H, Zhao X, Liu F, Cai H, Fu Y, Sun X, Gu P, Zhu Z, Sun C. Natural variations at TIG1 encoding a TCP transcription factor contribute to plant architecture domestication in rice[J]. Molecular Plant, 2019, 12(8): 1075-1089.
[15]	Liu J, Wang X, Wang J, Ye J, Zhang M, Xu Q, Yang Y, Wei X, Jia B, Feng Y. Identification of the BTA8 gene reveals the contribution of natural variation to tiller angle in rice[J]. Journal of Integrative Agriculture, 2024, 23(8): 2868-2871.
[16]	Wu X, Tang D, Li M, Wang K, Cheng Z. Loose Plant Architecture1, an INDETERMINATE DOMAIN protein involved in shoot gravitropism, regulates plant architecture in rice[J]. Plant Physiology, 2013, 161(1): 317-329.
[17]	Okamura M, Hirose T, Hashida Y, Yamagishi T, Ohsugi R, Aoki N. Starch reduction in rice stems due to a lack of OsAGPL1 or OsAPL3 decreases grain yield under low irradiance during ripening and modifies plant architecture[J]. Functional Plant Biology, 2013, 40(11): 1137-1146.
[18]	Huang L, Wang W, Zhang N, Cai Y, Liang Y, Meng X, Yuan Y, Li J, Wu D, Wang Y. LAZY2 controls rice tiller angle through regulating starch biosynthesis in gravity-sensing cells[J]. The New Phytologist, 2021, 231(3): 1073-1087.
[19]	Li P, Wang Y, Qian Q, Fu Z, Wang M, Zeng D, Li B, Wang X, Li J. LAZY1 controls rice shoot gravitropism through regulating polar auxin transport[J]. Cell Research, 2007, 17(5): 402-410.
[20]	Yoshihara T, Iino M. Identification of the gravitropism-related rice gene LAZY1 and elucidation of LAZY1-dependent and -independent gravity signaling pathways[J]. Plant and Cell Physiology, 2007, 48(5): 678-688.
[21]	Hu Y, Li S, Fan X, Song S, Zhou X, Weng X, Xiao J, Li X, Xiong L, You A, Xing Y. OsHOX1 and OsHOX28 redundantly shape rice tiller angle by reducing HSFA2D expression and auxin content[J]. Plant Physiology, 2020, 184(3): 1424-1437.
[22]	Li Z, Liang Y, Yuan Y D, Wang L, Wang Y H. OsBRXL4 regulates shoot gravitropism and rice tiller angle through affecting LAZY1 nuclear localization[J]. Molecular Plant, 2019, 12(8): 1143-1156.
[23]	Chen Y, Fan X, Song W, Zhang Y, Xu G. Over-expression of OsPIN2 leads to increased tiller numbers, angle and shorter plant height through suppression of OsLAZY1[J]. Plant Biotechnology Journal, 2012, 10(2): 139-149.
[24]	Li H, Sun H, Jiang J, Sun X, Tan L, Sun C. TAC4 controls tiller angle by regulating the endogenous auxin content and distribution in rice[J]. Plant Biotechnology Journal, 2021, 19(1): 64-73.
[25]	王兴宇, 王静, 徐群, 章孟臣, 王珊, 孙燕飞, 魏兴华, 杨窑龙, 郭晓红, 冯跃. 利用高密度遗传图谱定位两种不同环境的水稻剑叶形态性状QTL差异[J]. 中国稻米, 2024, 30(6): 29-34.
	Wang X Y, Wang J, Xu Q, Zhang M C, Wang S, Sun Y F, Wei X H, Yang Y L, Guo X H, Feng Y. The difference of QTL for morphological traits of rice flag leaf by high-density genetic map in two different environments[J]. China Rice, 2024, 30(6): 29-34. (in Chinese with English abstract)
[26]	欧阳由男. 水稻分蘖角度动态变化的生态生理机理研究和数量遗传分析[D]. 杭州: 浙江大学, 2008.
	Ouyang Y N. Physiological and genetic mechanisms for change of tiller angle during growth in rice (Oryza sativa L.)[D]. Hangzhou: Zhejiang University, 2008. (in Chinese with English abstract)
[27]	沈圣泉, 庄杰云, 包劲松, 郑康乐, 夏英武, 舒庆尧. 水稻分蘖最大角度的QTL分析[J]. 农业生物技术学报, 2005, 13(1): 16-20.
	Shen S Q, Zhuang J Y, Bao J S, Zheng K L, Xia Y W, Shu Q Y. Analysis of QTLs with additive, epistasis and G × E interaction effects of the tillering angle trait in rice[J]. Journal of Agricultural Biotechnology, 2005, 13(1): 16-20. (in Chinese)
[28]	Meng L, Li H, Zhang L, Wang J. QTL IciMapping: Integrated software for genetic linkage map construction and quantitative trait locus mapping in biparental populations[J]. The Crop Journal, 2015, 3(3): 269-283.
[29]	McCouch S R, CGSNL. Gene nomenclature system for rice[J]. Rice, 2008, 1(1): 72-84.
[30]	He Y, Li L, Jiang D. Understanding the regulatory mechanisms of rice tiller angle, then and now[J]. Plant Molecular Biology Reporter, 2021, 39(3): 640-647.
[31]	钱前, 何平, 滕胜, 曾大力, 朱立煌. 水稻分蘖角度的QTLs分析[J]. 遗传学报, 2001, 28(1): 29-32.
	Qian Q, He P, Teng S, Zeng D L, Zhu L H. QTLs analysis of tiller angle in rice (Oryza sativa L.)[J]. Acta Genetica Sinica, 2001, 28(1): 29-32. (in Chinese with English abstract)
