八个抗稻瘟病基因在华南籼型杂交水稻中的分布

doi:10.16819/j.1001-7216.2017.6114 299

摘要/Abstract

摘要：

【目的】已克隆的稻瘟病抗性基因Pi1、Pik-p、Pik-h、Pi2、Pi9、Piz-t、Pita、Pii对不同稻区的稻瘟病菌表现较广谱的抗性,被广泛应用于水稻抗瘟性育种。为了明确上述抗性基因在华南稻区杂交稻组合中的分布及其组合的抗病有效性,【方法】利用上述8个抗病基因的功能标记,对华南328个杂交稻组合进行了抗瘟基因型分子检测。【结果】抗性基因Pita和Pii分布频率最高,在测试组合中检出率分别为84.76%与67.68%;其次是Pi2与Pik-p,分别为22.87%与13.72%;检出频率较低的是Pi1、Piz-t和Pik-h,分别为5.18%、3.35%与2.13%,检测的品种都不携带抗性基因Pi9。在单个杂交稻组合中,检出的抗瘟基因数量最多是4个。抗病性评价结果表明,杂交稻组合中检出的抗病基因数量越多,其表现为抗病品种的频率就越高;含4个抗病基因的杂交稻组合中,抗病品种所占比率达91.67%。含有不同抗瘟基因的组合表现出不同水平的抗瘟性,其中Pi2与Pi1对华南稻区稻瘟病的抗病性贡献最大,其他抗病基因的贡献大小依次是Pik-h、Pik-p、Pita、Pii与Piz-t。【结论】本研究为华南稻区杂交稻抗病品种基因型的合理布局以及抗瘟基因的应用提供了科学依据。

关键词: 杂交稻组合, 抗病基因, 稻瘟病, 基因型分析, 分子标记

Abstract:

【Objective】The cloned rice blast resistant genes, Pi1, Pik-p, Pik-h, Pi2, Pi9, Piz-t, Pita and Pii, which showed broad-spectrum blast resistance in different rice growing regions, have been widely used in rice breeding for blast resistance. To clarify the distribution of these genes in hybrid rice in South China, 【Method】the genotypes of resistance genes Pi1, Pik-p, Pik-h, Pi2, Pi9, Piz-t, Pita and Pii in 328 hybrid rice combinations were detected with functional markers. 【Result】The distribution frequency of Pita and Pii was the highest, reaching 84.76% and 67.68% in the tested rice combinations, respectively; followed by Pi2 and Pik-p with the proportion of 22.87% and 13.72%, respectively; Pi1, Piz-t and Pik-h had the lowest distribution frequency, accounting for 5.18%, 3.35% and 2.13% of total; all of these varieties didn’t carry resistance gene Pi9. The number of blast resistance genes detected in hybrid rice combinations were at most four. The resistance evaluation showed that the frequency of resistant varieties rose with increasing number of resistance genes in hybrid combinations. In a hybrid combinations with four resistance genes, the distribution frequency of resistant varieties was 91.67%. Blast resistance contribution assay of the eight resistance genes revealed that Pi2 and Pi1 displayed the greatest resistance contribution in the local rice in South China, followed by Pik-h, Pik-p, Pita, Pii and Piz-t. 【Conclusion】This study provided a scientific basis for the rational distribution of resistant varieties with different genotypes in South China.

Key words: hybrid rice combinations, resistance gene, rice blast, genotype analysis, molecular marker

中图分类号:

汪文娟, 周继勇, 汪聪颖, 苏菁, 封金奇, 陈炳, 冯爱卿, 杨健源, 陈深, 朱小源. 八个抗稻瘟病基因在华南籼型杂交水稻中的分布[J]. 中国水稻科学, 2017, 31(3): 299-306.

Wenjuan WANG, Jiyong ZHOU, Congying WANG, Jing SU, Jinqi FENG, Bing CHEN, Aiqing FENG, Jianyuan YANG, Shen CHEN, Xiaoyuan ZHU. Distribution of Eight Rice Blast Resistance Genes in indica Hybrid Rice in China[J]. Chinese Journal OF Rice Science, 2017, 31(3): 299-306.

图/表 5

表1 各基因特异标记检测引物

Table 1 Specific marker detecting primers for each gene.

引物名称	引物序列(5’-3’)		预期片段大小	标记类型		内切酶		参考文献
Primer name	Primer sequence (5’-3’)	Expected size/bp			Marker type	Enzyme		Reference
Pi2-SNP	F: TACTCTTCGTTGTATAGGAC		462	CAPS		HinfⅠ	[24]
	R: GGAGGAGGAGATGAAATAGAATC
Pi9-SNP	F: CGCCGGTTGATAAGTAAAAGCT		126	dCAPS		Hind Ⅲ	[24]
	R: CAAGAACTAATATCTACCCATGG
Piz-t P/A	F: ATGTGGATGCTGTGTTAT		176	Presence/Absence		—	[24]
	R: TAGTTTGCTGCTCAATAAGTA
K1	F: GCAAGATCAGTACCATCACGAGTAATAGCA		1600	Presence/Absence		—	[19]
	R: GAGTAGCACTCAACGCAAAAGGGCATCGGC
Pik-p2/Pik-h2 SNP	F: CGTGGAAGTTCAACAAAAGG		114	dCAPS		NdeⅠ	[19]
	R: CAGCACCTGTATTATCCCAT
Pik-h1/Pik-p1 SNP	F: TGCTGCAGGTCAGCCAAGCTTA		138	dCAPS		MseⅠ	[19]
	R: CAACCGTTGTTTTGCCTCC
Pi1-SNP	F: CAATAGTCCAGCTAAAACGG		179	CAPS		RsaⅠ	[20]
	R: CATTGCGCCTTTACCTTGT
Pita-SNP	F: GCCGTGGCTTCTATCTTCAGCT		181	dCAPS		PvuⅡ	未发表 Unpublished
	R: GTAACTGTAAAATGACAAGAAAC						未发表 Unpublished
Pii-4SNP	F: TCCAATGCTTCTGAAAGGTAGC		350(240/113)	CAPS		PvuⅡ	[23]
	R: TGGAAACATGAACCCATATCC

图1 基于特异性SNP分子标记的水稻品种抗瘟基因检测 M–DL500。A–区分Pik-p和Pik-h的SNP标记对部分组合的分子检测,CK1–IRBLkp-K60 ( Pik-p+),CK2–IRBLkh-K3 (Pik-h+);B–Pii基因特异性分子标记对部分组合的分子检测,CK1–IRBLi-F5（Pii +）;C–Pi2基因特异性分子标记对部分组合的分子检测,CK1–C101A51 (Pi2+);D–Pita基因特异性分子标记对部分组合的分子检测,CK1–IRBLta-CP1 (Pita+)。泳道1~15:部分杂交稻组合,依次是天优613、泰丰优806、元丰优401、新优1003、裕优132、恒丰优华占、裕优9822、泰丰优2213、盛优华占、信两优3号、乐两优1173、天优华占、恒丰优9802、五丰优1173 与 Y两优1173。

Fig. 1. Detection of R genes in rice cultivars with specific SNP markers. M, DL500. A, Identification of Pik-p and Pik-h with specific SNP marker; CK1, IRBLkp-K60(Pik-p+); CK2, IRBLkh-K3(Pik-h+). B, Identification of Pii with specific SNP marker; CK1, IRBLi-F5(Pii+). C, Identification of Pi2 with specific SNP marker; CK1, C101A51(Pi2+). D, Identification of Pita with specific SNP marker; CK1, IRBLta-CP1 (Pita+). Lanes 1-15, Some of hybrid rice combinations, Tianyou 613, Taifengyou 806, Yuanfengyou 401, Xinyou 1003, Yuyou 132, Hengfengyouhuazhan, Yuyou 9822, Taifengyou 2213, Shengyouhuazhan, Xinliangyou 3, Leliangyou 1173, Tianyouhuazhan, Hengfengyou 9802, Wufengyou 1173, Y liangyou 1173.

图2 抗稻瘟病基因在杂交稻组合中的分布

Fig. 2. Distribution of the blast resistance genes in the hybrid rice combinations.

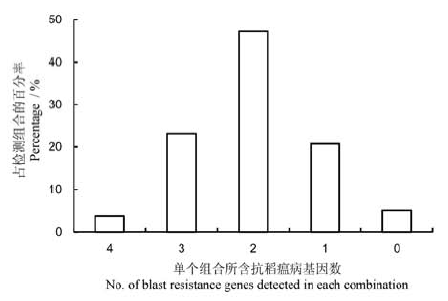

图3 单个杂交稻组合所含基因数及其所占比率

Fig. 3. Number of blast resistance genes detected in each hybrid rice combination and the percentage.

图4 328个华南稻区杂交稻组合抗性水平分布

Fig. 4. Percentage of resestance levels in the 328 hybrid rice combinations.

参考文献 31

[1]	Liu J L, Wang X J, Mitchell T, Hu YJ, Liu X L, Dai L Y, Wang G L.Recent progress and understanding of the molecular mechanisms of the rice-Magnaporthe oryzae interaction.Mol Plant Pathol, 2010, 11(3): 419-427.
[2]	Ou S H. Rice Disease.2nd edn. Kew: Commonwealth Mycological Institute, 1985: 109-201.
[3]	Miah G, Rafii M Y, Ismail M R, Puteh A B, Rahim H A, Asfaliza R, Latif M A.Blast resistance in rice: A review of conventional breeding to molecular approaches.Mol Biol Rep, 2013, 40(3): 2369-2388.
[4]	朱小源, 杨健源, 陈玉托, 杨维新, 陈喜劳, 曾列先, 陈深. 引致天优998抗性丧失的稻瘟病菌小种鉴定及其致病性测定. 广东农业科学, 2008(12): 84-86.
	Zhu X Y, Yang J Y, Chen Y T, Yang W X, Chen X L, Zeng L X, Chen S. Race identification and pathogenicity test of the blast fungus causing the resistance breakdown of hybrid rice Tianyou 998. Guangdong Agric Sci, 2008(12): 84-86. (in Chinese with English abstract)
[5]	汪文娟, 韦小燕, 陈凯玲, 陈尉芹, 陈珍, 杨健源, 朱小源. 源自杂交稻组合五优308稻瘟病菌致病性分析. 广东农业科学, 2015, 14: 70-73.
	Wang W J, Wei X Y, Chen K L, Chen W Q, Chen Z, Yang J Y, Zhu X Y.Pathogenicity analysis on Magnaporthe grisea of hybrid combination Wuyou 308.Guangdong Agric Sci, 2015, 14: 70-73. (in Chinese with English abstract)
[6]	Fjellstrom R, Conaway-Bormans C A, McClung A M, Marchetti M A, Shank A R, Park W D. Development of DNA markers suitable for marker assisted selection of three Pi genes conferring resistance to multiple Pyricularia grisea pathotypes.Crop Sci, 2004, 44: 1790-1798.
[7]	Liu W D, Liu J L, Triplett L, Leach J E, Wang G L.Novel insights into rice innate immunity against bacterial and fungal pathogens. Annu Rev Phytopathol, 2014, 52: 213-241.
[8]	李进斌, 李成云, 陈艳, 雷财林, 凌忠专. 二十二个抗稻瘟病基因在云南的利用价值评价. 植物保护学报, 2005, 32(2): 113-119.
	Li J B, Li C Y, Chen Y, Lei C L, Ling Z Z.Evaluation of twenty-two blast resistance genes in Yunnan using monogenetic rice lines.Acta Phytophyl Sin, 2005, 32(2): 113-119. (in Chinese with English abstract)
[9]	杨健源, 陈深, 曾列先, 李亦龙, 陈珍, 朱小源. 稻瘟病主效抗性基因对广东省籼稻稻瘟病菌的抗性评价. 中国水稻科学, 2008, 22(2): 190-196.
	Yang J Y, Chen S, Zeng L X, Li Y L, Chen Z, Zhu X Y.Evaluation on resistance of major rice blast resistance genes to Magnaporthe grisea isolates collected from indica rice in Guangdong Province, China.Chin J Rice Sci, 2008, 22(2): 190-196. (in Chinese with English abstract)
[10]	柳武革, 王丰, 金素娟, 朱小源, 李金华, 刘振荣, 廖亦龙, 朱满山, 黄慧君, 符福鸿, 刘宜柏. 利用分子标记辅助选择聚合Pi-1和Pi-2基因改良两系不育系稻瘟病抗性. 作物学报, 2008, 34(7): 1128-1136.
	Liu W G, Wang F, Jin S J, Zhu X Y, Li J H, Liu Z R, Liao Y L, Zhu M S, Huang H J, Fu F H, Liu Y B.Improvement of rice blast resistance in TGMS Line by pyramiding of Pi-1 and Pi-2 through molecular marker-assisted selection.Acta Agron Sin, 2008, 34(7): 1128-1136. (in Chinese with English abstract)
[11]	李进波, 夏明元, 戚华雄. 水稻抗稻瘟病基因Pi1和Pi2聚合系的获得及其抗性评价. 安徽农业科学, 2015, 43(5): 12-14, 31.
	Li J B, Xia M Y, Qi H X.Development and evaluation of disease resistance of pyramided lines with blast resistance genes Pi1 and Pi2 in rice. J Anhui Agric Sci, 2015, 43(5): 12-14, 31. (in Chinese with English abstract)
[12]	张国民, 马军韬, 肖佳雷, 刘迎雪, 辛爱华, 任洋, 张丽艳, 刘东风. 已知抗瘟基因在黑龙江省寒地稻区的评价与利用. 植物病理学报, 2011, 41(1): 72-79.
	Zhang G M, Ma J T, Xiao J L, Liu Y X, Xin A H, Ren Y, Zhang L Y, Liu D F.Evaluation and utilization of value of twenty-four blast resistance genes in north cold region, Heilongjiang.Acta Phytopathol Sin, 2011, 41(1): 72-79. (in Chinese with English abstract)
[13]	Ma J, Lei C L, Xu X T, Hao K, Wang J, Cheng Z, Ma X, Ma J, Zhang X, Guo X, Wu F, Lin Q, Wang C, Zhai H, Wan J.Pi64, encoding a novel CC-NBS-LRR protein, confers resistance to leaf and neck blast in rice.Mol Plant Microbe Interact, 2015, 28(5): 558-568.
[14]	Su J, Wang W J, Han J L, Chen S, Wang C Y, Zeng L X, Feng A Q, Yang J Y, Zhou B, Zhu X Y.Functional divergence of duplicated genes results in a novel blast resistance gene Pi50 at the Pi2/9 locus.Theor Appl Genet, 2015, 128(11): 2213-2225.
[15]	何重, 陈涛, 张亚东, 朱镇, 赵庆勇, 周丽慧, 于新, 王才林. 江苏部分粳稻品种和品系中稻瘟病抗性基因Pi-ta和Pi-b的基因型分析. 江苏农业学报, 2014, 30(5): 921-927.
	He C, Chen T, Zhang Y D, Zhu Z, Zhao Q Y, Zhou L H, Yu X, Wang C L.Genotypic analysis of blast resistance genes Pi-ta and Pi-b for japonica rice varieties and lines in Jiangsu Province.Jiangsu Agric Sci, 2014, 30(5): 921-927. (in Chinese with English abstract)
[16]	程芳艳, 李春光, 刘永巍, 孙翊轩,孟昭河,徐正进. 水稻抗瘟基因Pi-b与Pi-5的分子检测及外引抗源的利用评价. 核农学报, 2016, 30(1): 11-18.
	Cheng F Y, Li C G, Liu Y W, Sun Y X, Meng Z H, Xu Z J.Molecular detection of blast resistance genes Pi-b and Pi-5 in northeast rice varieties and utilization evaluation of introduced resistant donors.J Nuclear Agric Sci, 2016, 30(1): 11-18. (in Chinese with English abstract)
[17]	朱小源, 杨健源, 刘景梅, 司徒志谋, 康金平, 胡学应, 朱敏记, 罗森辉, 杨祁云, 林佩珍, 曾列先, 姜先芽, 陈深. 广东水稻品种抗稻瘟病性分析与利用策略. 广东农业科学, 2006(5): 34-37.
	Zhu X Y, Yang J Y, Liu J M, Situ Z M, Kang J P, Hu X Y, Zhu M J, Luo S H, Yang Q Y, Lin P Z, Zeng L X, Jiang X Y, Chen S. Evaluation on resistance of rice varieties in Guangdong to rice blast and strategy for its utilization.Guangdong Agric Sci, 2006(5): 34-37. (in Chinese with English abstract)
[18]	冯爱卿, 杨健源, 陈深, 曾列先, 杨祁云, 苏菁, 汪文娟, 朱小源. 水稻资源对稻瘟病质量抗性及数量抗性评价. 广东农业科学, 2015, 42(12): 27-32.
	Feng A Q, Yang J Y, Chen S, Zeng L X, Yang Q Y, Su J, Wang W J, Zhu X Y.Evaluation on qualitative and quantitative resistance of rice germplasm to Magnaporthe oryzae. 2015. Guangdong Agric Sci, 2015, 42(12): 27-32. (in Chinese)
[19]	Zhai C, Lin F, Dong Z Q, He X, Yuan B, Zeng X, Wang L, Pan Q.The isolation and characterization of Pik, a rice blast resistance gene which emerged after rice domestication.New Phytol, 2011, 189(1): 321-334.
[20]	Hua L X, Wu J Z, Chen C X, Wu W H, He X Y, Lin F, Wang L, Ashikawa I, Matsumoto T, Wang L, Pan Q H.The isolation of Pi1, an allele at the Pik locus which confers broad spectrum resistance to rice blast.Theor Appl Genet, 2012, 125: 1047-1055.
[21]	Yuan B, Zhai C, Wang W J, Zeng X S, Xu X K, Hu H Q, Lin F, Wang L, Pan Q H.The Pik-p resistance to Magnaporthe oryzae in rice is mediated by a pair of closely linked CC-NBS-LRR genes.Theor Appl Genet, 2011, 122: 1017-2108.
[22]	Neff M M, Turk E, Kalishman M.Web-based primer design for single nucleotide polymorphism analysis.Trends Genet, 2002, 18(12): 613-615.
[23]	Takagi H, Uemura A, Yaegashi H, Tamiru M, Abe A, Mitsuoka C, Utsushi H, Natsume S, Kanzaki H, Matsumura H, Saitoh H, Yoshida K, Cano L M, Kamoun S O, Terauchi R.MutMap-Gap: Whole-genome sequencing of mutant F2 progeny bulk combined with de novo assembly of gap regions identifies the rice blast resistance gene Pii.New Phytol, 2013, 200(1): 276-283.
[24]	华丽霞, 汪文娟, 陈深, 汪聪颖, 曾烈先, 杨健源, 朱小源, 苏菁. 抗稻瘟病Pi2/9/z-t基因特异性分子标记的开发. 中国水稻科学, 2015, 29(3): 305-310.
	Hua L X, Wang W J, Shen C, Wang C Y, Zeng L X, Yang J Y, Zhu X Y, Su J.Development of specific DNA markers for detecting the rice blast resistance gene alleles Pi2/9/z-t.Chin J Rice Sci, 2015, 9(3): 305-310. (in Chinese with English abstract)
[25]	朱小源, 杨祁云, 杨健源, 雷财林, 王久林, 凌忠专. 抗稻瘟病单基因系对籼稻稻瘟病菌小种鉴别力分析. 植物病理学报, 2004, 34(4): 361-368.
	Zhu X Y, Yang Q Y, Yang J Y, Lei C L, Wang J L, Ling Z Z.Differentiation ability of monogenic lines to Magnaporthe grisea in indica rice.Acta Phytopathol Sin, 2004, 34(4): 361-368. (in Chinese with English abstract)
[26]	时克, 雷财林, 程治军, 许兴涛, 王久林, 万建民. 稻瘟病抗性基因Pita和Pib在我国水稻主栽品种中的分布. 植物遗传资源学报, 2009, 10(1): 21-26.
	Shi K, Lei C L, Cheng Z J, Xu X T, Wang J L, Wan J M.Distribution of two blast resistance genes Pita and Pib in major rice cultivars in China.J Plant Genet Res, 2009, 10(1): 21-26. (in Chinese with English abstract)
[27]	马军韬, 张国民, 辛爱华, 张丽艳, 邓凌韦, 任洋. 水稻品种抗稻瘟病分析及基因聚合抗性改良. 植物保护学报, 2016, 43(2): 177-183.
	Ma J T, Zhang G M, Xin A H, Zhang L Y, Deng L W, Ren Y.Resistance analysis and improvement of rice varieties by gene pyramiding.Acta Phytophyl Sin, 2016, 43(2): 177-183. (in Chinese with English abstract)
[28]	Tian D G, Chen Z J, Chen Z Q, Zhou Y C, Wang Z H, Wang F, Chen S B.Allele-specific marker-based assessment revealed that the rice blast resistance genes Pi2 and Pi9 have not been widely deployed in Chinese indica rice cultivars.Rice, 2016, 9(1): 19. doi: 10.1186/s12284-016-0091-8.
[29]	王丰, 柳武革, 刘振荣, 朱小源, 李金华, 廖亦龙, 朱满山, 黄慧君, 杨健源. 利用分子标记辅助选择聚合Pi-1和fgr基因改良水稻恢复系. 杂交水稻, 2010(S1): 237-244.
	Wang F, Liu W G, Liu Z R, Zhu X Y, Li J H, Liao Y L, Zhu M S, Huang H J, Yang J Y. Pyramiding Pi1 and fgr genes to improve rice restorer lines by molecular marker-assisted selection. Hybrid Rice, 2010(S1): 237-244. (in Chinese with English abstract)
[30]	柳武革, 王丰, 刘振荣, 朱小源, 李金华, 黄慧君, 廖亦龙, 朱满山, 付崇允, 陈建伟. 利用分子标记技术聚合Pi-1和Pi-2基因改良三系不育系荣丰A的稻瘟病抗性. 分子植物育种, 2012, 10(5): 575-582.
	Liu W G, Wang F, Liu Z R, Zhu X Y, Li J H, Huang H J, Liao Y L, Zhu M S, Fu C Y, Chen J W.Improvement of rice blast resistance in CMS line Rongfeng A by pyramiding Pi-1 and Pi-2 with molecular marker techniques.Mol Plant Breeding, 2012, 10(5): 575-582. (in Chinese with English abstract)
[31]	汪文娟, 苏菁, 张杰, 李亦龙, 陈深, 曾列先, 杨健源, 朱小源. 源于粤晶丝苗2号穗瘟的稻瘟病菌致病性分析. 广东农业科学, 2012, 23:59-61.
	Wang W J, Su J, Zhang J, Li Y L, Chen S, Zeng L X, Yang J Y, Zhu X Y.Pathogenicity analysis of the rice blast fungus isolated from the blast panicles of Yuejingsimiao 2.Guangdong Agric Sci, 2012, 23:59-61. (in Chinese)
